Track Lamp Housing

Established in 2017, JE Company has consistently been a premium raw material supplier for LED tube manufacturers. We serve hundreds of factories both domestically and internationally, providing professional solutions for their LED tube housings, LED rugged light housings, and LED linear light housings. As a leading LED tube housing manufacturer in China, our products not only cover T5 and T8 tube housings, but also, to keep pace with current development trends, we offer a variety of LED tube solutions, such as high-quality LED plant grow light housings and LED track lamp housings that meet various specifications and requirements. These two products are our main products developed in recent years, achieving an IP65 waterproof rating and V0, V1, and V2 flame retardant ratings. Some raw materials have even passed EN 45545-2 certification. We sincerely look forward to cooperating with you in any way you may require.

Send Inquiry

Product Description

JE's T8 LED tube housings are not only favored by domestic LED tube manufacturers but also widely welcomed by numerous LED lighting manufacturers worldwide. The JE-26 is a semi-aluminum, semi-plastic LED T8 tube kit. The lampshade is made of plastic polycarbonate, available in transparent and milky white light-diffusing materials. If the raw materials used meet multiple certification standards in the LED track lamp industry (such as UL-94 V0, V1, V2 and EN 45545-2), then this product can also be used for professional lighting in modern LED track lights. The aluminum profile uses thickened aerospace-grade 6063-T5 material, featuring a simple and elegant appearance and resistance to deformation. It matches G13 end caps and is suitable for 19*1mm PCB boards.

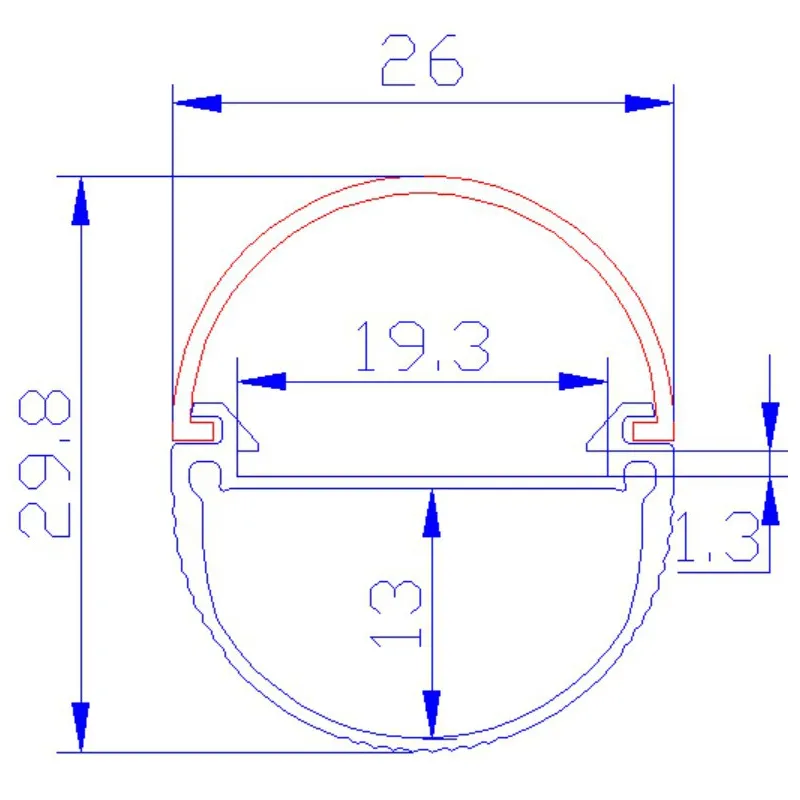

Product Parameter (Specification)

Length	600mm, 900mm, 1200mm, 1500mm, 2400mm or customized
Tube	T8
Diameter	26mm
PCB board size	19*1.2mm
Driver	Internal
Max height of driver	12mm
Aluminum base material	6063 aluminum alloy
Aluminum base color	Silver
Plastic diffuser material	Polycarbonate
Plastic diffuser color	Frosted, Clear(transparent), stripe
End caps	Plastic
Waterproof	IP20

Product Feature And Application

This JE-26 LED track lamp housing is mainly used for rail vehicle lighting, such as track lighting in train stations, on trains, in subway stations, and in subway cars, and so on.

Product Details

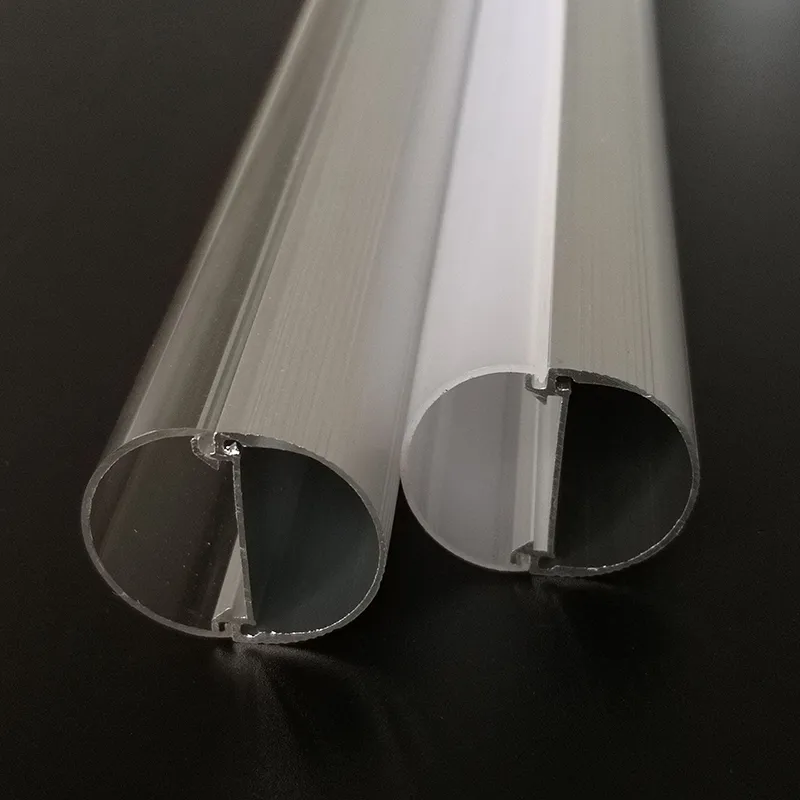

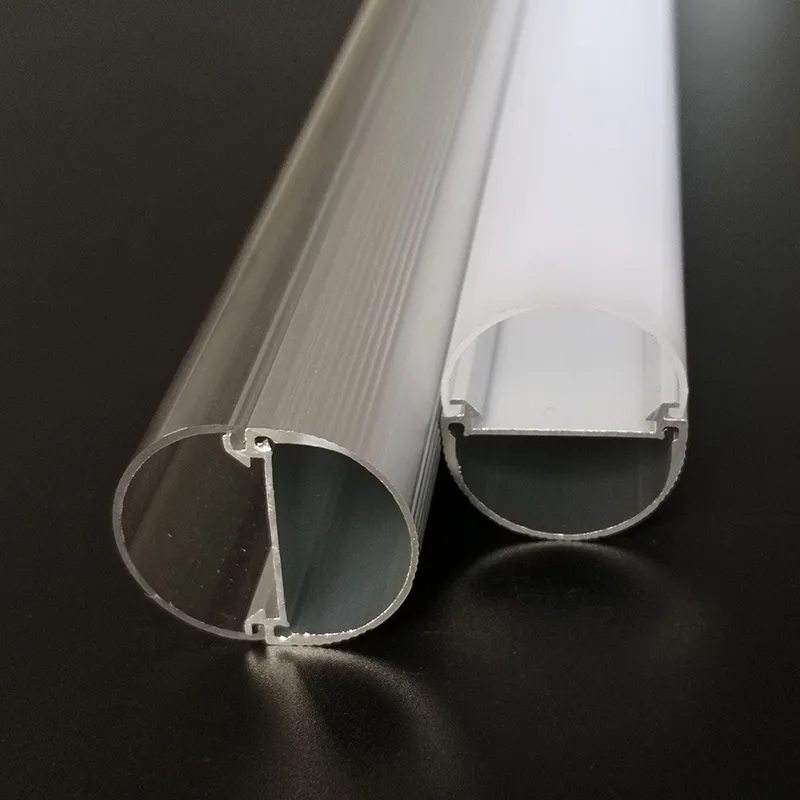

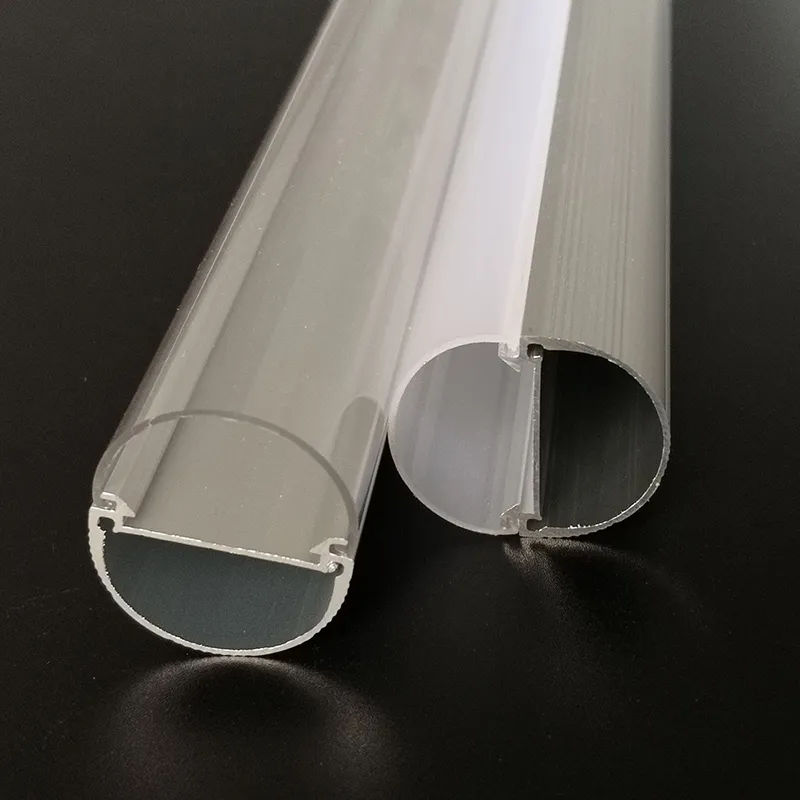

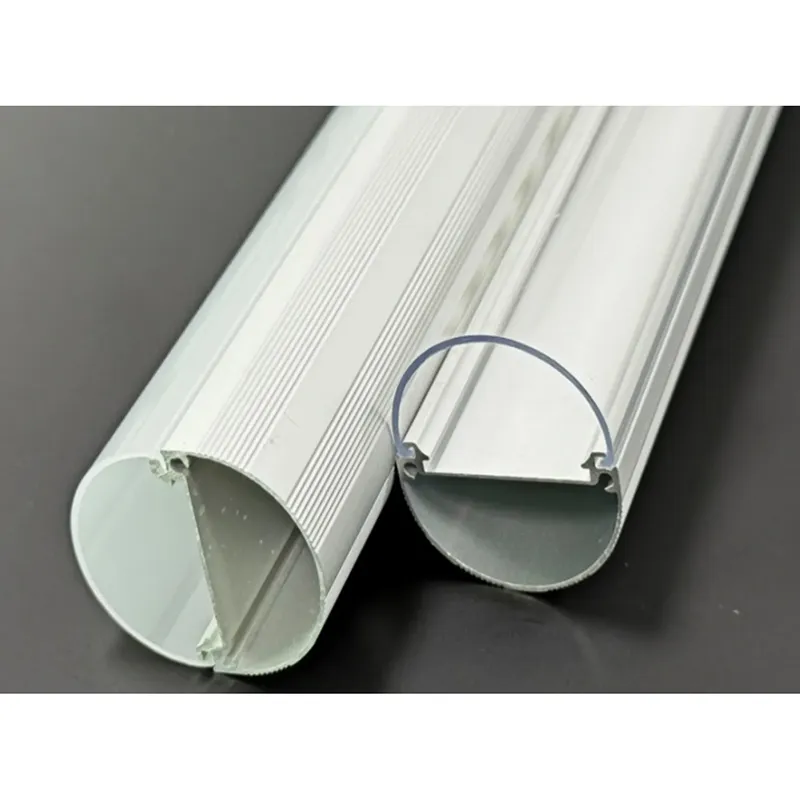

More details of this LED track lamp housing:

Product Qualification

As a LED Aluminum Profile and LED plastic profile professional manufacturer, here are our main machines:
1.20 plastic extrusion machines
2.5 aluminum extrusion machines,
3.A professional integrating sphere to test whether the lamps made by our lamp kit can meet the various indicators required by customers,
4.A professional standard light source testing equipment for testing the light transmittance and other properties of plastic lampshades.
JE always focus on product qualification from aluminum and plastic raw material to extrusion production line, from samples quality control to mass production control, from strong perfect package to whole-heart service.

Deliver,Shipping And Serving

FAQ

Q1. How long is the validity of the offer(quotation)?

Re: Usually for one month.

Q2. If OEM is acceptable?

Re: Yes, We have so various types of professional and technical personnel and enough machines that are very willing to accept OEM&ODM cooperation.

Q3. Do you provide sample? Free or charge?

Re: Yes, we charge for samples.

Q4. How long is your lead time?

Re: For our regular items the lead time is about 3-5 days. For customized items, the lead time is about 25-35 days including tools making time.

Q5. What is your normal processes for regular order?

Re: We are very suggest customer give the forecast for the next three month. This are our normal processes for regular order:

Receiving PO--Sales confirm PI with customer--Receiving 30% payment in advance--Sales assistant proceed production and confirm the exact LT--QC confirm the goods are ready for shipping--Receiving the balance payment--Arranging shipment--after sales service.
