LED T8 Plastic Housing PC Outer Tube and Inner Aluminum
  • LED T8 Plastic Housing PC Outer Tube and Inner AluminumLED T8 Plastic Housing PC Outer Tube and Inner Aluminum
  • LED T8 Plastic Housing PC Outer Tube and Inner AluminumLED T8 Plastic Housing PC Outer Tube and Inner Aluminum
  • LED T8 Plastic Housing PC Outer Tube and Inner AluminumLED T8 Plastic Housing PC Outer Tube and Inner Aluminum
  • LED T8 Plastic Housing PC Outer Tube and Inner AluminumLED T8 Plastic Housing PC Outer Tube and Inner Aluminum
  • LED T8 Plastic Housing PC Outer Tube and Inner AluminumLED T8 Plastic Housing PC Outer Tube and Inner Aluminum
  • LED T8 Plastic Housing PC Outer Tube and Inner AluminumLED T8 Plastic Housing PC Outer Tube and Inner Aluminum

LED T8 Plastic Housing PC Outer Tube and Inner Aluminum

This LED T8 plastic housing PC outer tube and inner aluminum can emit light up to 240 degrees. JE LED Profile CO., LTD is a one-stop manufacturer of LED aluminum profiles supplier in China who have 20 plastic extrusion machines and 5 aluminum extrusion machines.

Send Inquiry

Product Description

1. Products Introduction

The shell of this JE-30 LED T8 Plastic Housing PC Outer Tube and Inner Aluminum is pure PC (polycarbonate), the thickness of the diffuser cover can be between 0.6mm - 2.0mm, and there are many advantages:
1. High light transmittance: the transparency of the pure milky white cover can reach more than 85%, and the pure transparent cover can reach more than 95%.
2. High cold resistance: low temperature resistance -30 ℃, high temperature resistance 80-120 ℃.
3. Good flexibility: strong impact resistance, not easy to deform.
4. Perfect appearance: The product has high finish, no black spots, no stretch marks, no water waves, and the pass rate is over 95%.


2.Product Parameter (Specification)

Length

600mm, 900mm, 1200mm, 1500mm, 2400mm or customized

Tube

T8

Diameter

26mm

PCB board size

10*1.0mm

Driver

External or put into end caps

Max height of driver

/

Inner aluminum material

6063 aluminum alloy

Inner aluminum color

Silver

Plastic diffuser material

Polycarbonate

Plastic diffuser color

Frosted, Clear(transparent)

End caps

Plastic

Waterproof

IP20 or IP65


3.Product Feature And Application

This JE-30 LED T8 Plastic Housing PC Outer Tube and Inner Aluminum is Widely used in Factory, Supermarket, Corridor, School, Train station and so on.


4. Product Details

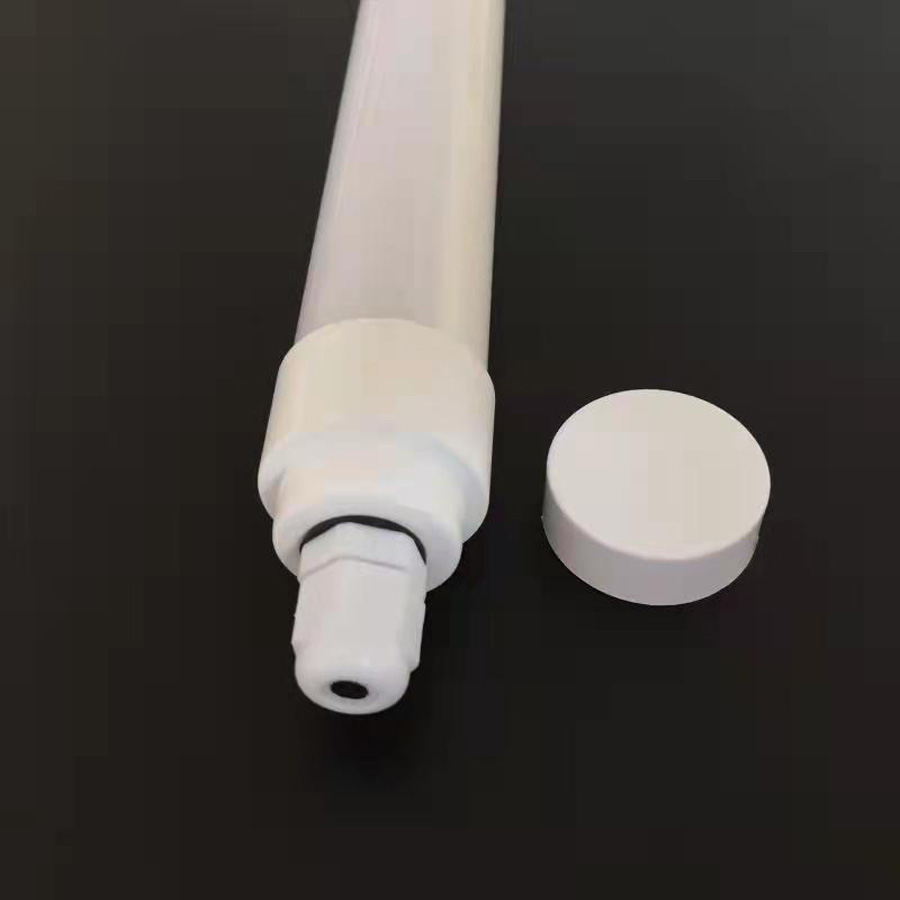

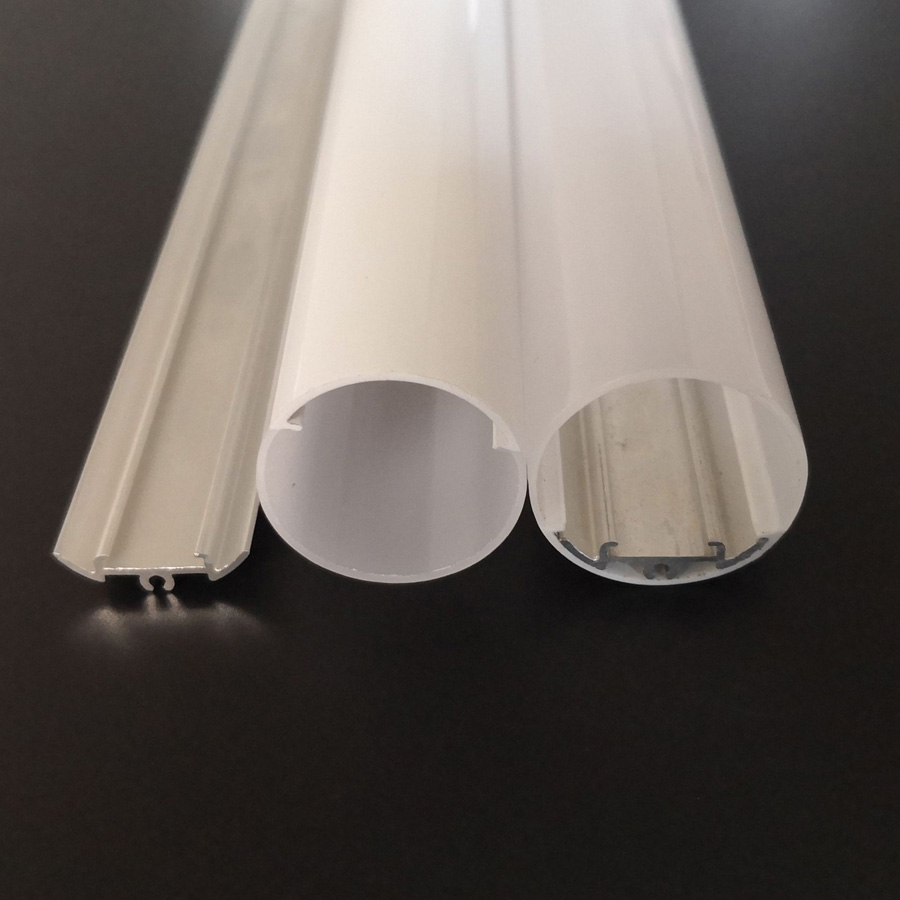

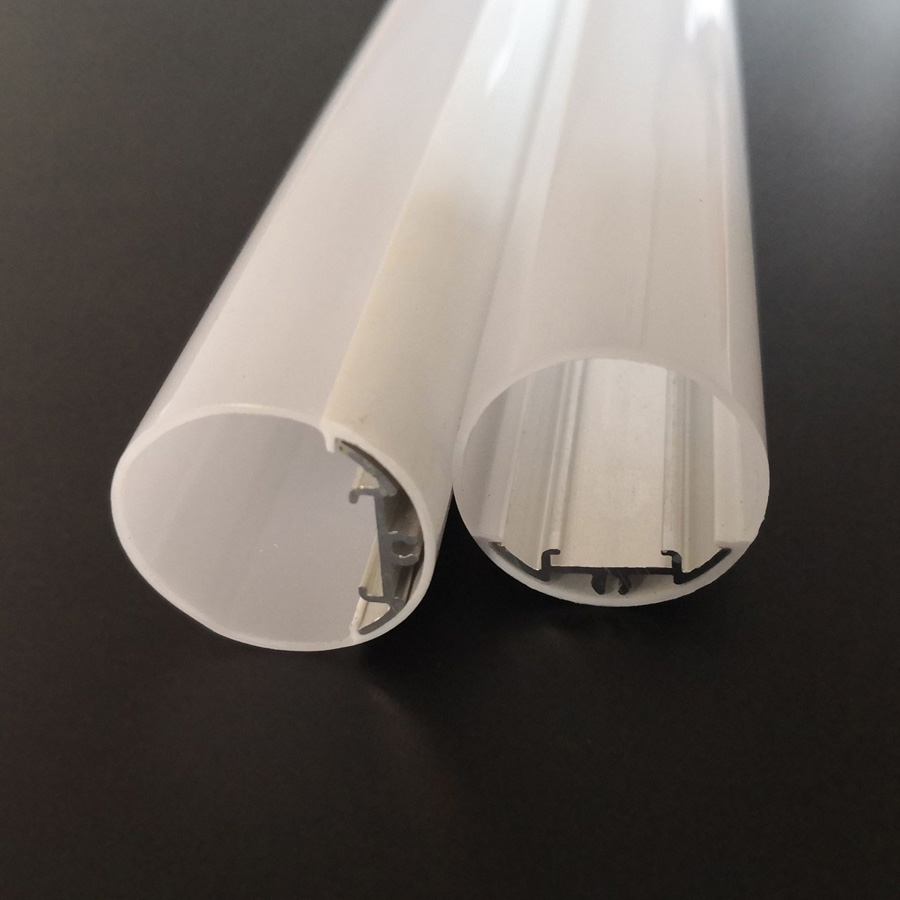

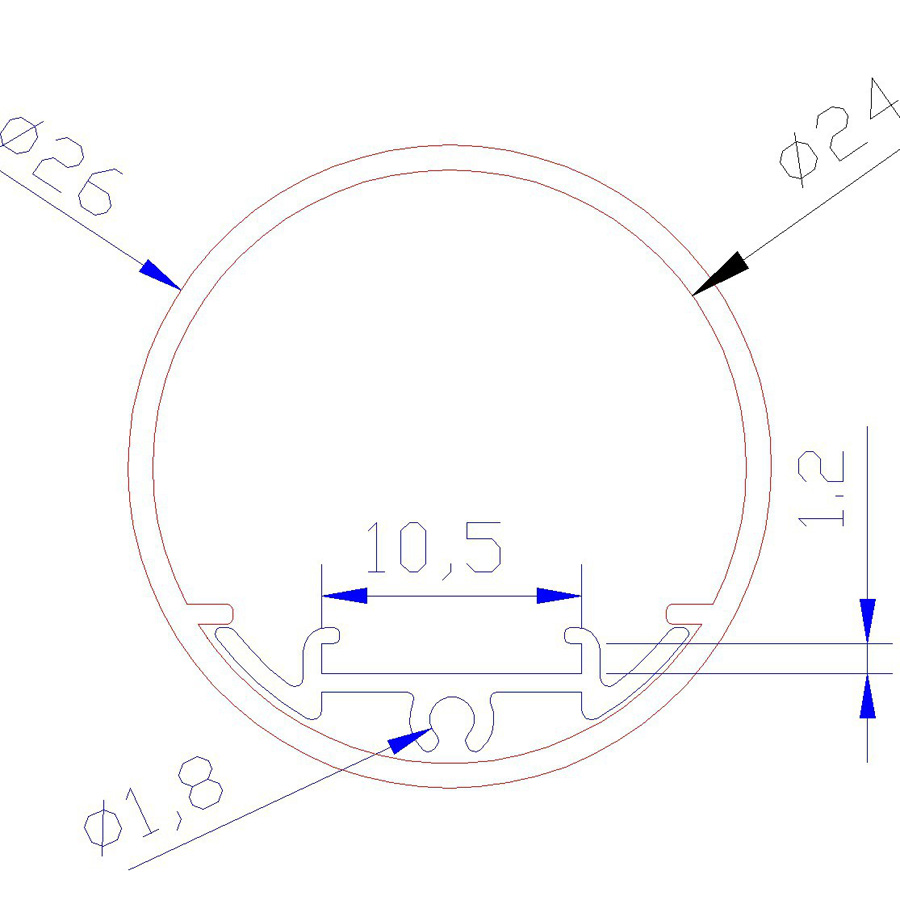

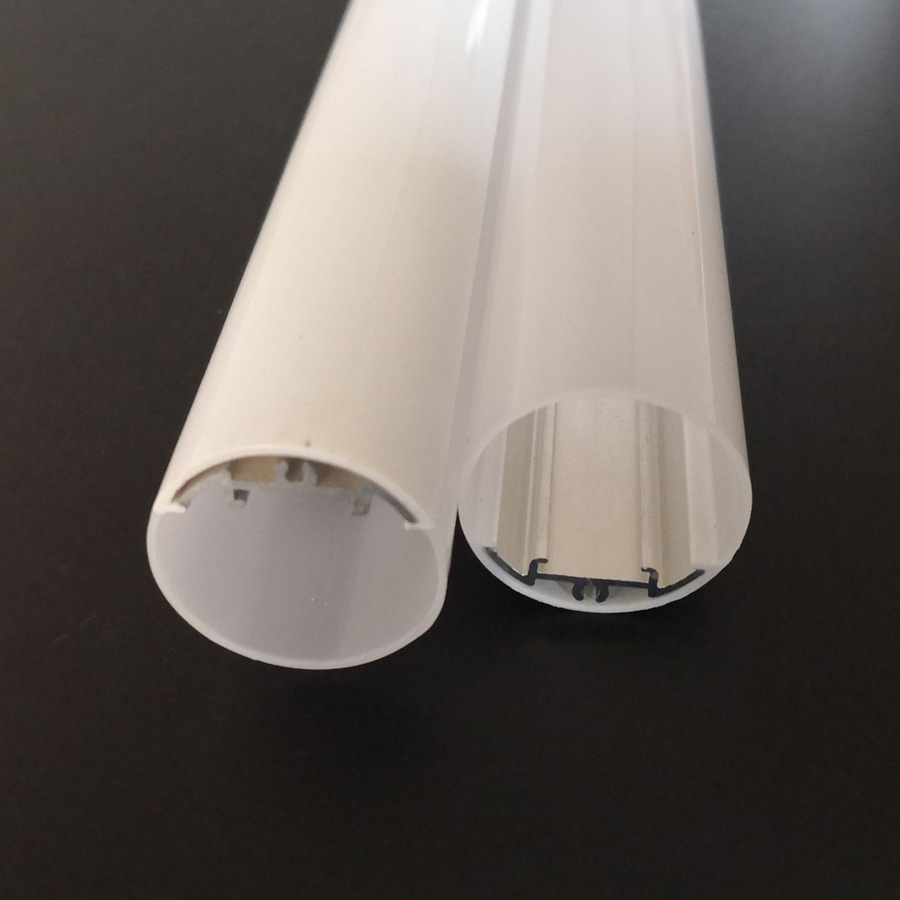

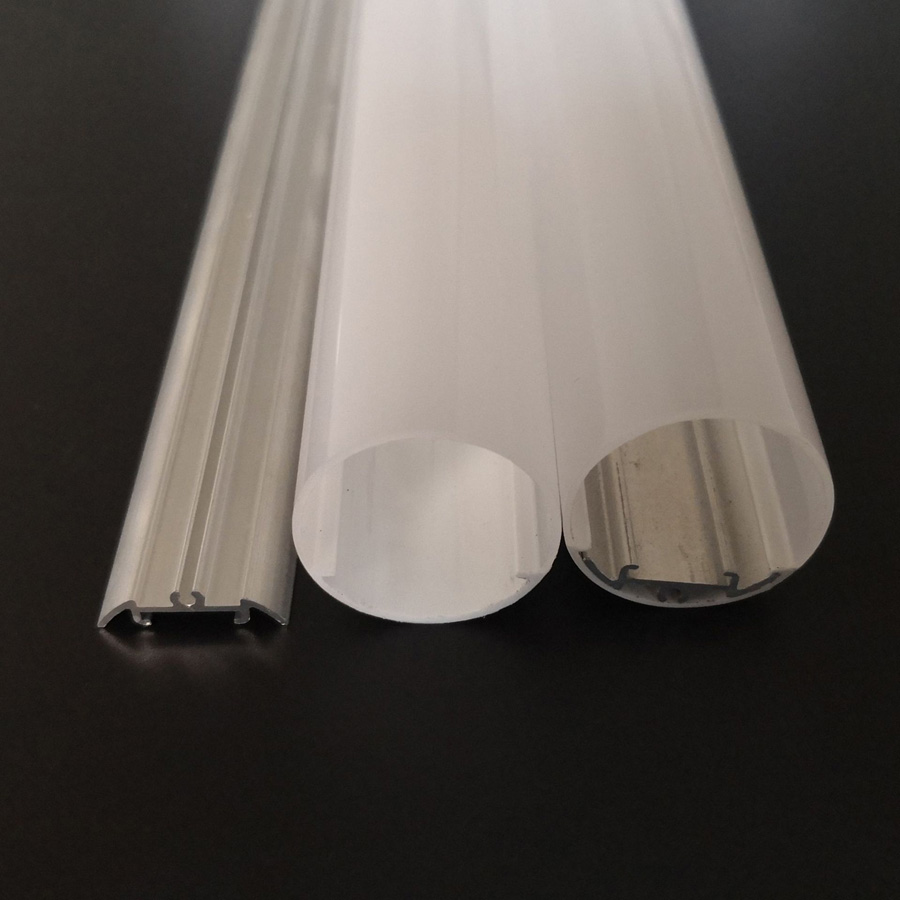

More details of this JE-30 LED T8 Plastic Housing PC Outer Tube and Inner Aluminum:


5. Product Qualification

As a LED Aluminum Profile and LED plastic profile professional manufacturer, here are our main machines:
1.20 plastic extrusion machines
2.5 aluminum extrusion machines,
3.A professional integrating sphere to test whether the lamps made by our lamp kit can meet the various indicators required by customers,
4.A professional standard light source testing equipment for testing the light transmittance and other properties of plastic lampshades.
JE always focus on product qualification from aluminum and plastic raw material to extrusion production line, from samples quality control to mass production control, from strong perfect package to whole-heart service.


6. Deliver,Shipping And Serving



7.FAQ

Q1. How many machines in your factory?
Re: 20 of plastic extrusion production lines,
5 of aluminum extrusion production lines,
3 of injection molding machines,
5 of precision mold manufacturing equipments,
2 of test equipment(integrating sphere and Color Assessment Cabinet).

Q2. If OEM&ODM are acceptable?
Re: Yes, We have so various types of professional and technical personnel and enough machines that are very willing to accept OEM&ODM cooperation.

Q3. Can you offer waterproof profiles?
Re: Yes, tri-proof housing with IP65 grade are our regular items

Q4. How long is your lead time?
Re: For our regular items the lead time is about 3-5 days. For customized items, the lead time is about 25-35 days including tools making time

Q5. What kinds of LED lighting can use your profiles?
Re: LED cabinet lighting, LED strip lights, T5/T6/T8/T10/T12 tubes, tri-proof tubes and special-shape tubes, etc.
