T8 Plastic Housing

JE provides customers with a complete set of T8 plastic housing, and cooperates with many high-quality light tube manufacturers at home and abroad. T8 plastic housing is a lamp shell that has been very popular among Chinese lamp manufacturers in recent years. Compared with the half-aluminum and half-plastic lamp shell, it has two notable features: First, the use of aluminum materials is reduced, so the price is less than half-aluminum half-plastic tube; the second is that the all-plastic tube can be waterproofed with glued plugs, which can achieve the waterproof level of IP65. We sincerely hope to cooperate with you soon.

Send Inquiry

Product Description

1. Products Introduction

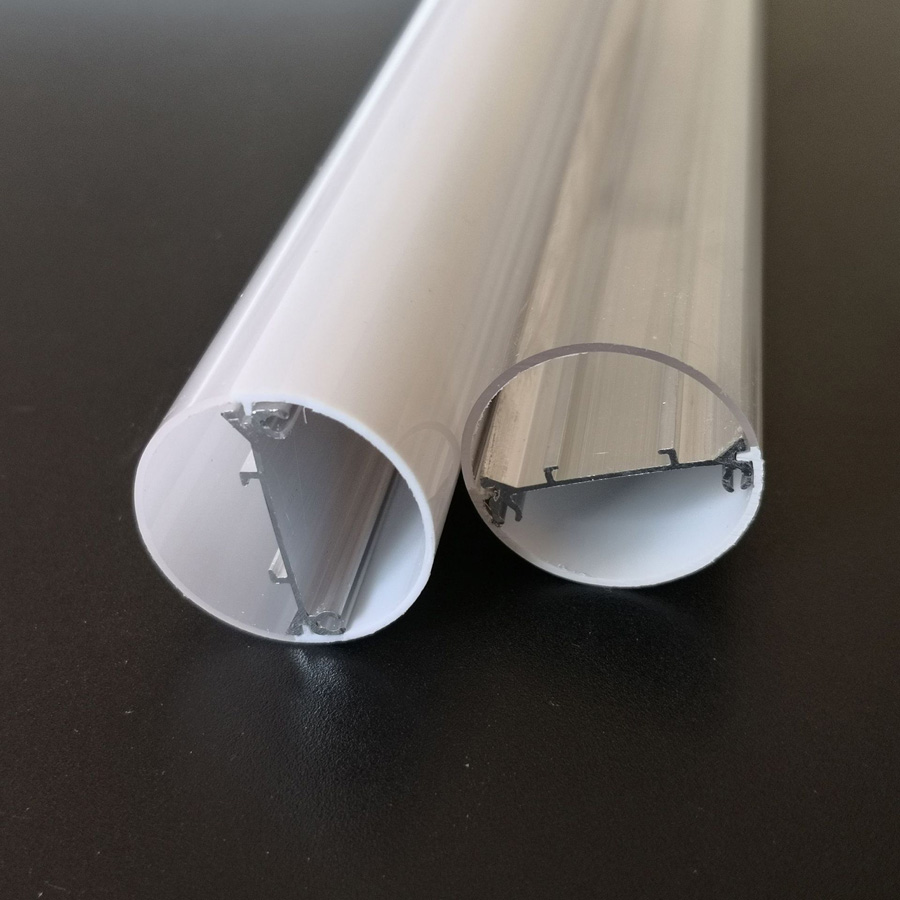

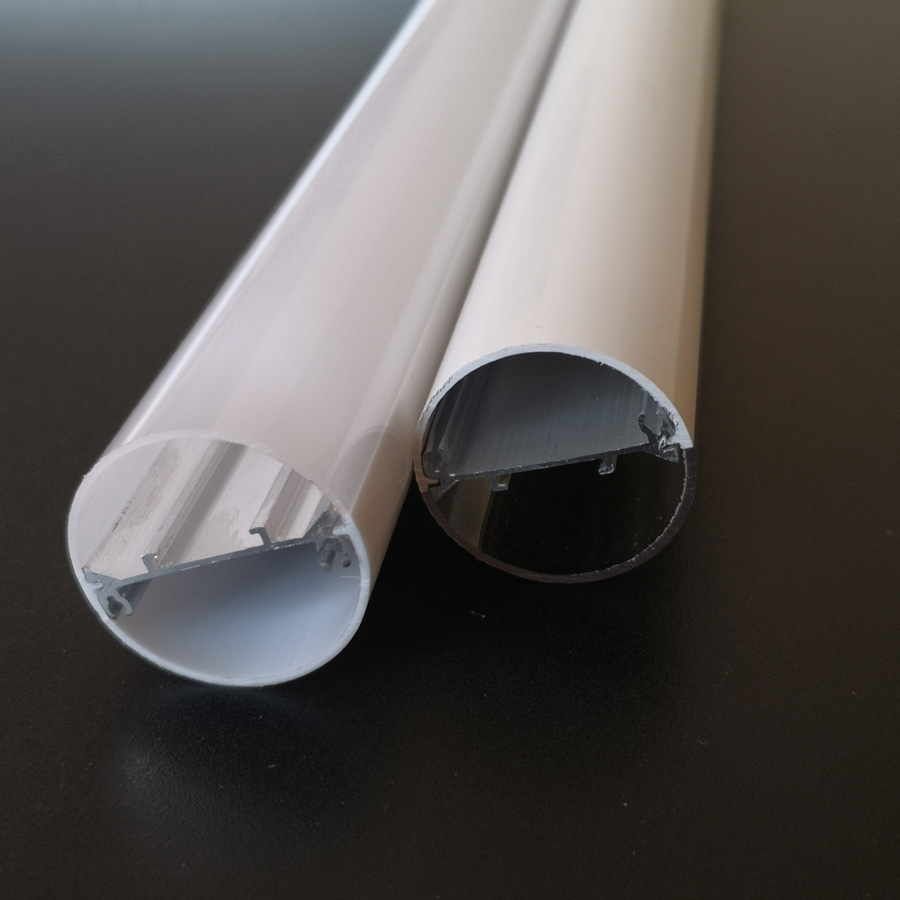

The T8 plastic housing produced by JE has various styles, stable quality and reasonable price, and is suitable for most LED tube manufacturers. The exterior of this T8 plastic tube is made of all-plastic profiles. Our plastic profiles are all extruded from 100% new materials, eliminating the use of recycled materials and secondary materials, so that the surface of the plastic profiles produced has no water marks, no impurities, with high transparent rate and the diffusion effect is very good. Inside the tube is the aluminum profile used to install the PCB board, which is made of 6063-T5 aluminum raw material. Anodizing is not only elegant in appearance, but also very conducive to heat dissipation.

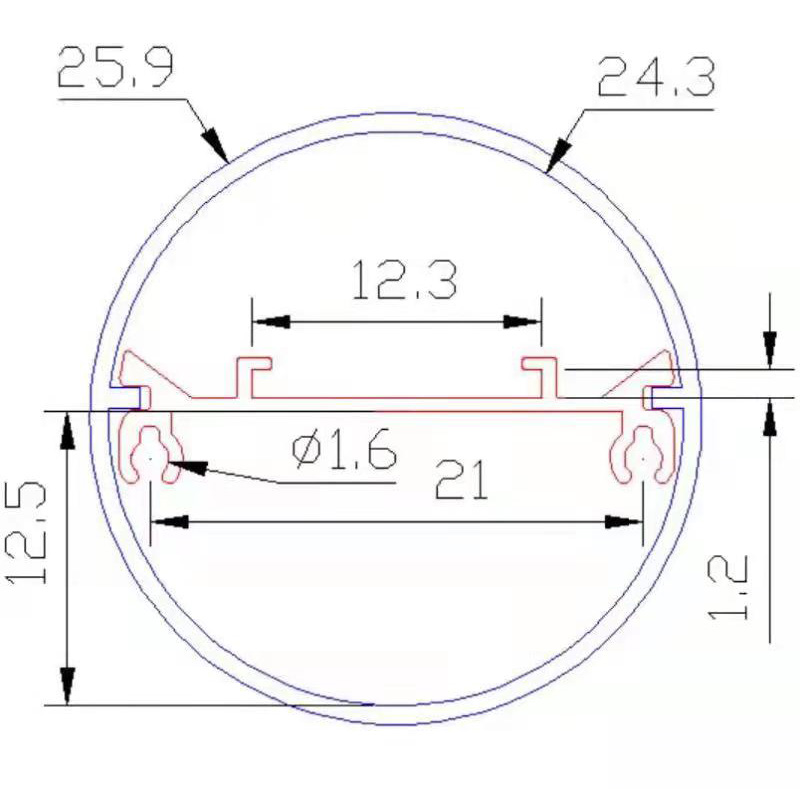

2.Product Parameter (Specification)

Length	600mm, 900mm, 1200mm, 1500mm, 2400mm or customized
Tube	T8
Diameter	26mm
PCB board size	12*1mm
Driver	Internal
Max height of driver	12mm
Aluminum profile inside material	6063 aluminum alloy
Aluminum profile inside color	Silver
Plastic tube material	Polycarbonate
Plastic tube color	White base, Frosted and Clear(transparent) cover
End caps	Plastic(screwing and gluing)
Waterproof	IP20 or IP65

3.Product Feature And Application

This T8 plastic housing is mainly used for home lighting, shopping mall lighting, school lighting, parking lot lighting, and more.

4.Product Details

More details of this LED T8 plastic tube housing:

5. Product Qualification

As a LED Aluminum Profile and LED plastic profile professional manufacturer, here are our main machines:
1.20 plastic extrusion machines
2.5 aluminum extrusion machines,
3.A professional integrating sphere to test whether the lamps made by our lamp kit can meet the various indicators required by customers,
4.A professional standard light source testing equipment for testing the light transmittance and other properties of plastic lampshades.

JE always focus on product qualification from aluminum and plastic raw material to extrusion production line, from samples quality control to mass production control, from strong perfect package to whole-heart service.

6. Deliver,Shipping And Serving

7.FAQ

Q1. Can you sell your products directly to engineering companies?

Re: Yes, and we can provide samples for each item, MOQ of each item for regular order is 1000 meters.

Q2. Do you have a sales target finished amount requirement to the distributor?

Re: Yes, 1 million USD of annual order can become a distributor in your country.

Q3. Can Your products be installed under the cold weather?

Re: Yes, Weather resistance is -40 degree to 120 degree.

Q4. Will the product deform during transportation?

Re: No, please be sure of our professional package.

Q5. What is process of OEM order?

Re: Receiving drawing--Project manage confirm all production details with customer--Receiving tool production PO--Sales assistant proceed tool production--QC confirm samples are ready for shipping--Project manage confirm products with customer about every details-- start the regular order..
