T8 Double-side Luminous Housing

JE isn’t the biggest name in lighting, and that’s actually part of the appeal. They’re big enough to handle large orders and complex custom work, but small enough to care about each batch. Their focus on linear lighting housings means they’ve seen every possible problem and solved it already. If you’re sourcing T8 Double-side luminous housing for your next project, I’d put JE on your short list.

Products Introduction

Real-World Applications – Where This Housing Shines

Let me give you three more quick examples from my project files.

Retail clothing store (San Francisco) – They wanted perimeter lighting that illuminated both the merchandise on racks (forward light) and the wall behind (backlight to reduce contrast). We mounted T8 Double-side luminous housing vertically on the wall, 3ft from the floor. Used 18W 3000K tubes with frosted diffusers. The double-sided effect created a floating glow around each fixture. Sales went up 12% in that section – not kidding. The manager said customers spent more time browsing.

School hallway (Ohio) – Standard 8ft ceilings, very narrow corridor. Single-side troffers created harsh shadows near the floor. We installed double-side housings flush-mounted into a dropped ceiling grid. The uplight bounced off the white ceiling tiles, filling the entire hallway with soft, shadow-free illumination. We used 14W tubes (low wattage because the space was small) and frosted diffusers. The school district ended up specifying the same housing for three other buildings.

Outdoor canopy (gas station) – This was tricky. The canopy had a white metal ceiling at 12ft height. They wanted bright downlight for fueling areas and some uplight to reduce the “black hole” look of the underside of the canopy. We used T8 Double-side luminous housing with IP65 rating, 24W 5000K tubes, clear PC for downlight (to punch through the distance) and frosted PC for uplight (to soften reflection off the white metal). Worked like a charm. No extra fixtures needed.

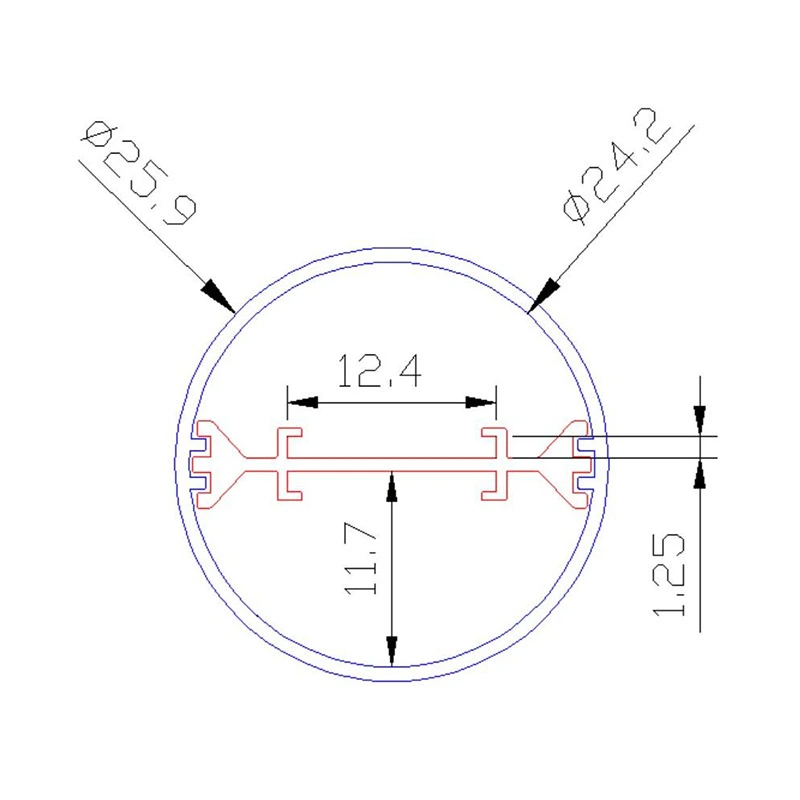

Product Parameter (Specification)

Product Feature And Application

This LED T8 double-side luminous housing is wildly used in rail vehicle lighting, such as track lighting in train stations, on trains, in subway stations, and in subway cars, and so on.

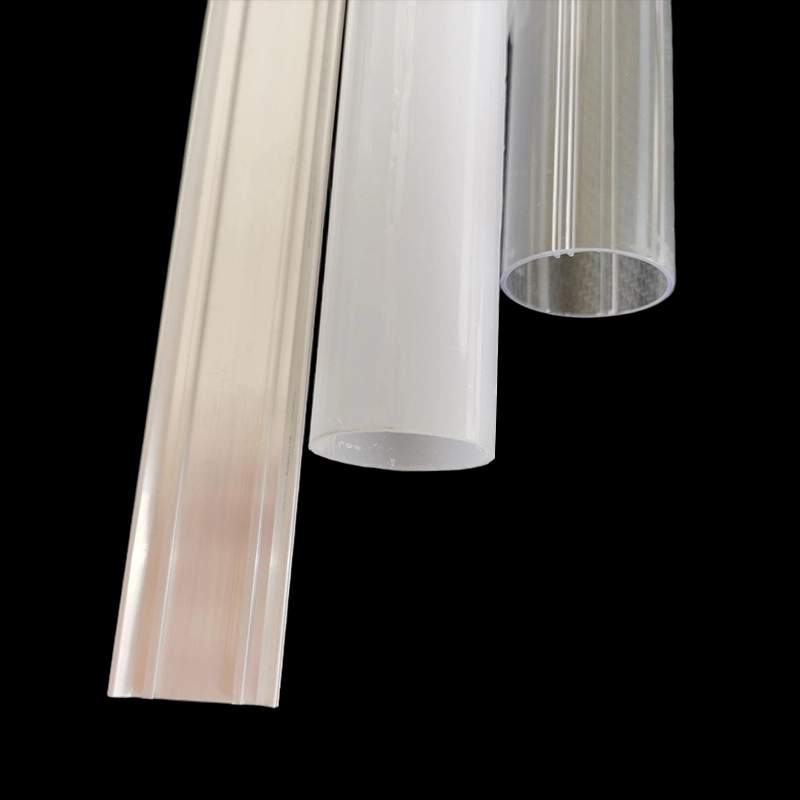

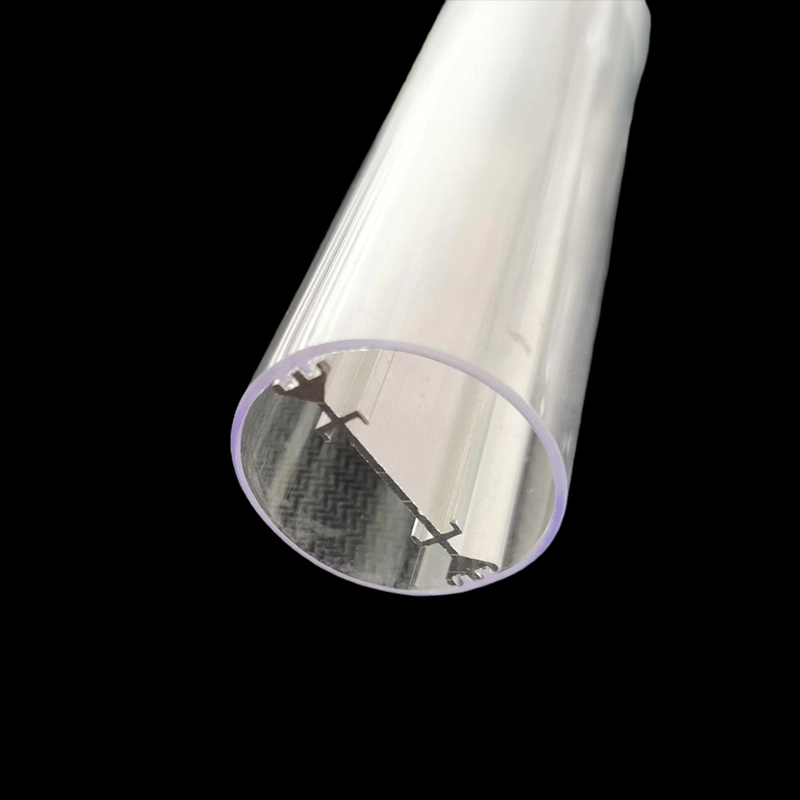

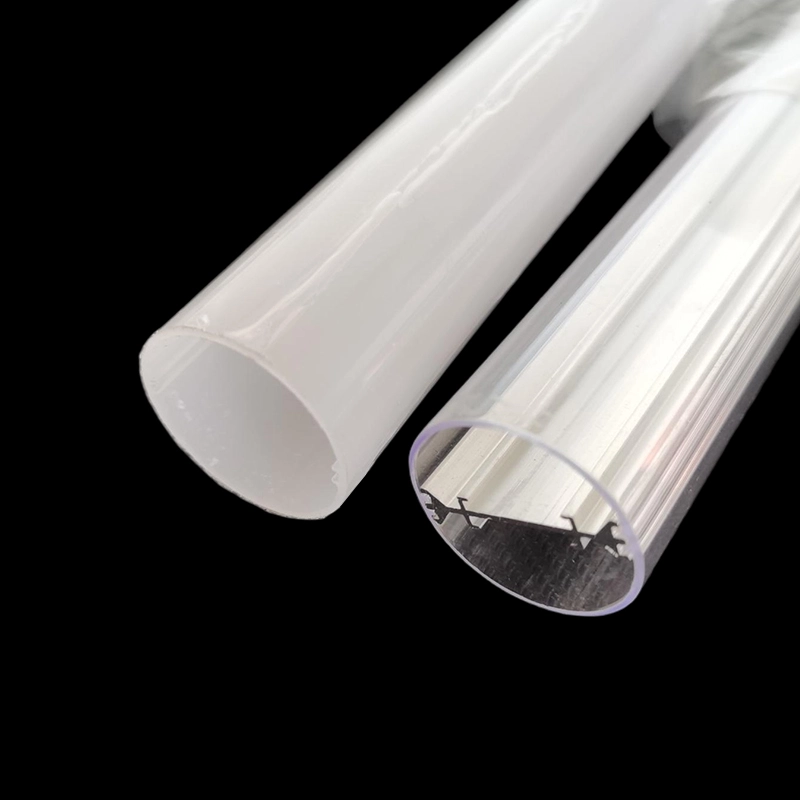

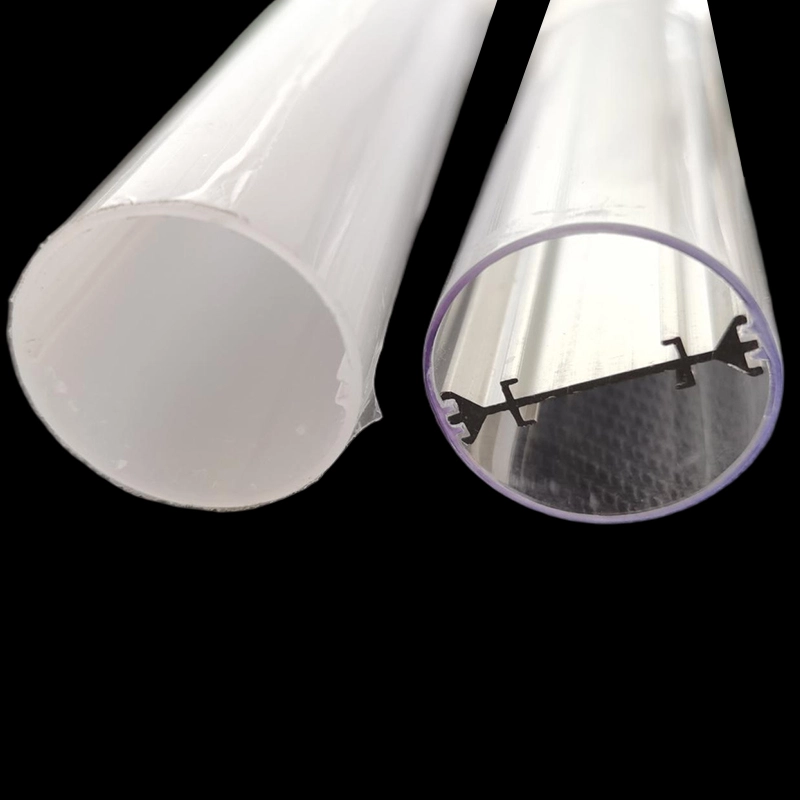

Product Details

More details of this LED T8 double-side luminous housing:

Product Qualification

As a LED Aluminum Profile and LED plastic profile professional manufacturer, here are our main machines:
1.20 plastic extrusion machines
2.5 aluminum extrusion machines,
3.A professional integrating sphere to test whether the lamps made by our lamp kit can meet the various indicators required by customers,
4.A professional standard light source testing equipment for testing the light transmittance and other properties of plastic lampshades.
JE always focus on product qualification from aluminum and plastic raw material to extrusion production line, from samples quality control to mass production control, from strong perfect package to whole-heart service.

Deliver,Shipping And Serving

FAQ

Here are the questions I hear most often from contractors, lighting designers, and facility managers. I’ll answer each one based on real field experience.

1.Can I use standard T8 LED tubes with a double-side housing, or do I need special tubes?

Standard single-ended or double-ended T8 LED tubes work perfectly fine. The housing doesn’t care which side emits light – the tube emits light 360 degrees naturally. In a single-side housing, you waste the back light. In a double-side housing, you capture both sides. However, if you want different color temperatures or wattages on each side, you’ll need two separate tubes (one facing up, one facing down) – but that requires a housing with internal dividers. Most double-side housings are designed for a single tube that shines through both diffusers. Check the housing’s inner height: if it can fit two tubes stacked, you have that option. Otherwise, one tube gives you same color temp and brightness on both sides.

2.How do I prevent light bleed at the ends?

End caps are the weak point. Even with reflective tape, some light escapes. The best solution is to use opaque end caps (black plastic or aluminum) with foam gaskets. I also recommend extending the housing 1-2 inches beyond the last visible diffuser in continuous-row installations, then capping the ends. Another trick: use a small piece of black electrical tape on the tube’s end glass – but that reduces total lumen output slightly. For critical architectural applications, specify housings with internal baffles near the ends.

3.What’s the maximum continuous length I can run without sagging?

For 1.2mm wall thickness, I don’t recommend going beyond 8 feet without a center support clip. For 1.5mm wall, you can push to 10 feet. But the real limit is the mounting clip spacing – clips every 4 feet maximum. I’ve seen 12-foot lengths with 1.5mm wall and clips at 3ft and 9ft – that worked fine. But always do a test hang. Aluminum expands and contracts with temperature, so leave 2-3mm gap between housings in a continuous run.

4.Can this housing be used outdoors in rain or snow?

Yes, but only if you verify the IP rating. Look for IP65 minimum. That means the gaskets, end caps, and cable entry glands are all sealed. Many cheap double-side housings claim IP65 but the cable gland is just a plastic bushing – water will wick in. I only use housings with pre-installed silicone gaskets and compression-type cable glands. Also, the PC diffuser must have UV stabilizer, as I mentioned earlier. Without it, the plastic becomes brittle in sunlight. One more thing: mount the housing with a slight tilt (1-2 degrees) so water doesn’t pool on the end caps.

5.How do I clean the inside if dust gets in?

Great question. Dust ingress usually happens through end caps or where wires enter. Once dust is inside, it’s nearly impossible to clean without disassembling everything. So prevention is key. Use a housing with IP66 or higher if you’re in dusty environments like wood shops or grain mills. If dust does get in, you can remove the end caps and blow compressed air through – but that may push dust into the tube sockets. Better solution: choose a housing where the PC diffusers snap off without tools, so you can wipe the interior annually. Some designs have hinged diffusers – those are gold.

6.What’s the typical payback period compared to using two single-side fixtures?

Let’s do quick math. One double-side housing costs roughly 1.6x a single-side housing. Two single-side fixtures (one up, one down) cost 2x plus extra mounting hardware, wiring, and labor. So you save about 20-30% upfront. Then there’s energy: two tubes vs. one tube (if you use one double-emission tube) cuts electricity in half. Payback period is often under 12 months for commercial electricity rates. I’ve run this calculation for dozens of clients – double-side always wins unless you need independent control of up/down light levels.

7.Can I dim the lights in this housing?

Absolutely. But the dimming compatibility depends on your T8 LED tube and driver (if external) or the tube’s internal driver. Most modern T8 tubes are dimmable via 0-10V, TRIAC, or DALI. The housing itself doesn’t affect dimming – it’s just a mechanical enclosure. However, heat dissipation becomes more critical at lower dimming levels because drivers run less efficiently. I’ve seen cases where tubes flicker at 10% dimming because the housing trapped heat. Always test your specific tube and dimmer combination with the housing before full installation.
