2026 Ultimate Guide to LED T8 Tube Housing with 10mm PCB: Thermal Data, 3D CAD & UL Compliance

Executive Summary: Key Takeaways for US Commercial LED Manufacturers

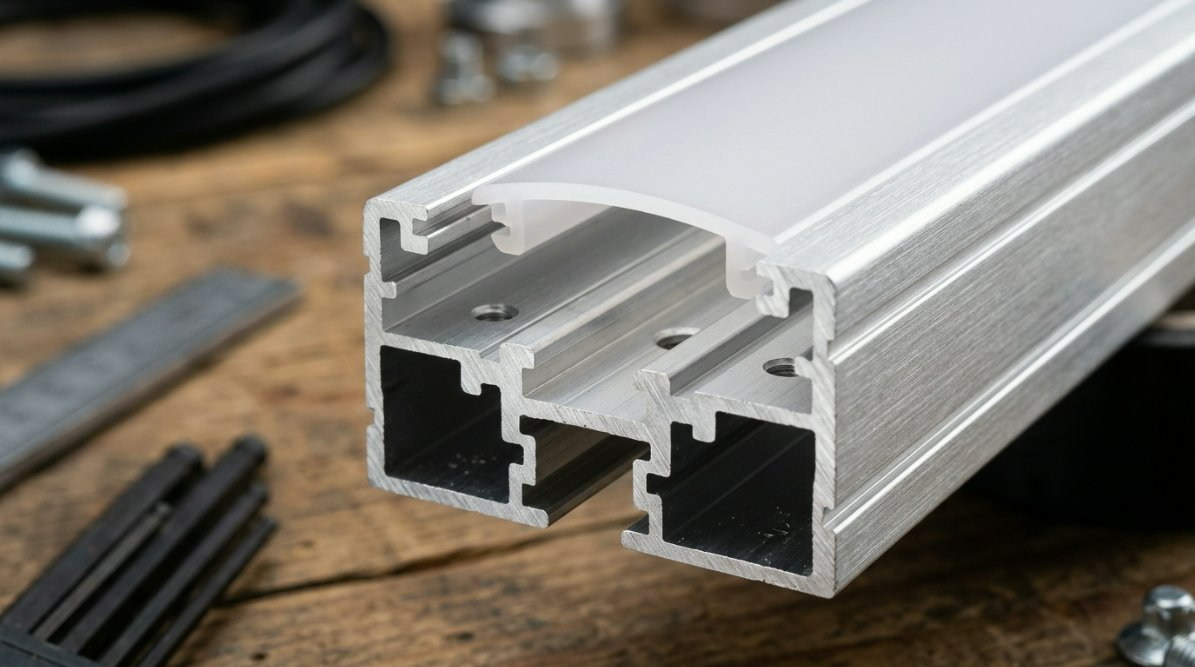

In the highly competitive North American commercial lighting industry, margins and efficiency dictate success. As lighting developers look to optimize performance while cutting manufacturing costs, the structural format of the T8 linear tube remains a dominant driver. Our flagship premium LED T8 Tube Housing with 10mm PCB represents a massive evolutionary step. By tailoring the aluminum extrusion footprint specifically for standard 10mm printed circuit boards, we eliminate dead structural space, reduce housing weights, and drive down raw material costs without compromising on rigidity.

For US distributors, contractors, and original equipment manufacturers (OEMs), this specialization means easier thermal management, predictable electrical characteristics, and direct physical compatibility with automated high-speed SMT (Surface Mount Technology) assembly lines. JE continues to support these global operations as a premier manufacturing partner in China, bridging the gap between high-volume production speeds and meticulous quality benchmarks.

Advanced Heat Management: Introducing the ThermaCore 10mm Precision Protocol

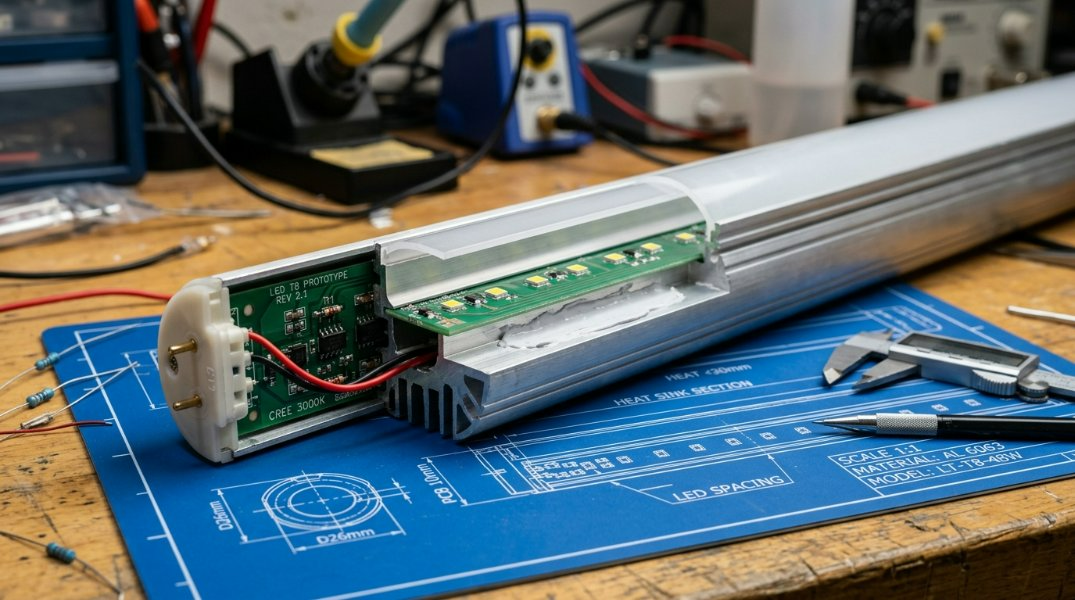

The primary bottleneck to LED longevity is thermal degradation. To solve this challenge for high-output applications, JE has introduced the ThermaCore 10mm Precision Protocol. This design methodology optimizes the contact surface area between the 10mm PCB carrier and the AL6063-T5 aluminum housing backbone. By keeping tolerance variations below 0.05mm, this protocol maximizes heat transfer efficiency directly from the diodes to the external thermal dissipation channels.

Bridging the Gap: Detailed Thermal Dissipation Data and Extrusion Analysis

Using structural AL6063-T5 alloy, our extrusion profiles act as highly efficient heat sinks. In testing laboratories, the ThermaCore 10mm Precision Protocol demonstrated an impressive thermal conductivity of 200 W/m·K. This system reduces overall thermal resistance by up to 18% compared to generic, multi-fit T8 housings that accommodate various PCB widths. Under continuous operation at 120V/277V, junction temperatures at the LED level remain consistently below 65°C (149°F), preventing lumen depreciation and guaranteeing a lifespan exceeding 50,000 hours.

Accelerating Design: 3D CAD Model Downloads for Custom Retrofits

To reduce design cycles for engineering teams, JE offers comprehensive 3D CAD models (available in STP, STEP, and DWG formats). These precise digital models allow for rapid prototyping, enabling engineers to run finite element analysis (FEA) thermal simulations and physical fitment checks before starting volume production. This structural integration is key to developing streamlined, durable linear lighting fixtures for competitive retrofitting bids.

US Regulatory Compliance: Navigating 2026 UL Standards and DLC V6.0 Specifications

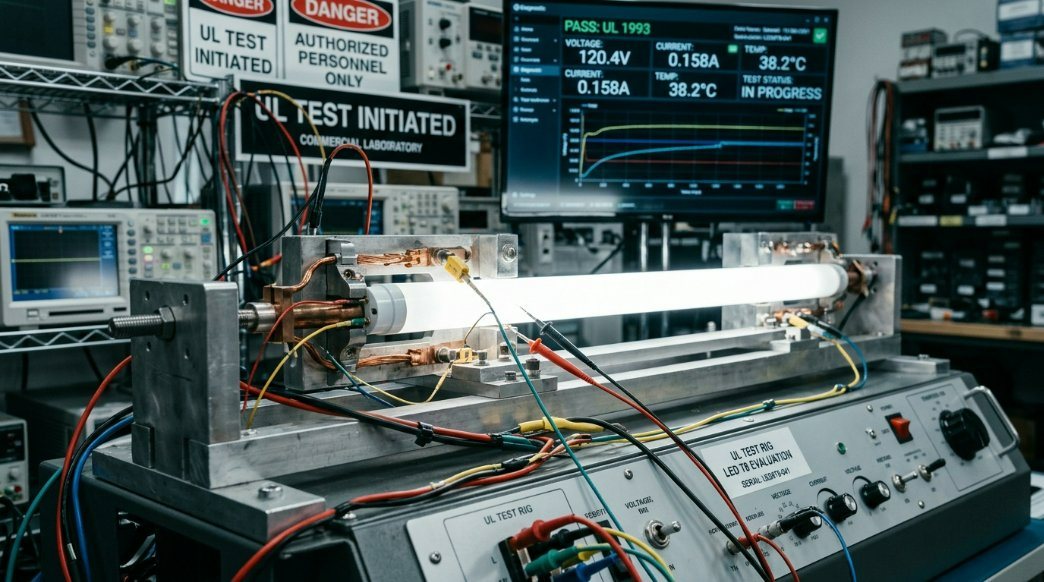

Importing and distributing commercial lighting products in North America requires strict adherence to safety and efficiency frameworks. Selecting compliant sub-assemblies is critical when applying for UL 1598 (Luminaires) and UL 1993 (Self-Ballasted Lamps) certifications. JE's JE's custom LED T8 tube housing systems use high-impact, fire-rated polycarbonate (PC) raw materials that easily meet UL 94 V-0 flammability classifications.

Ensuring FCC, CE, and RoHS Compatibility for the American Market

Beyond thermal performance, electromagnetic compatibility (EMC) and environmental safety are vital for large-scale municipal and corporate contracts. Our housings are built to shield high-frequency drivers effectively, facilitating compliance with FCC Part 15 Class B limits. Furthermore, all materials used in JE’s manufacturing processes are fully CE certified and RoHS compliant, ensuring they contain no restricted hazardous substances and simplifying international supply chain approvals.

Technical Specification Guide: Standard vs. High-Output 10mm PCB Housings Matrix

Our product lineup features several configuration options engineered to meet varied architectural demands. Below is a structural matrix showcasing the technical attributes of our standard and high-output waterproof variations:

Practical Step-by-Step Tutorial: 4-Step Waterproof Assembly for T8 Housings

Maintaining high IP67-rated seals on linear profiles requires meticulous preparation and exact execution. Follow this expert-backed four-step installation procedure for maximum field reliability.

Step 1: Precision 10mm PCB Insertion and Thermal Paste Application

Clean the aluminum housing substrate thoroughly using isopropyl alcohol to remove dust and oils. Apply a thin, even layer of non-conductive thermal paste or run a high-heat-transfer adhesive tape down the center channel. Carefully slide the 10mm PCB into the extrusion track, ensuring it lies flat with no air pockets beneath.

Step 2: Securing the Polycarbonate (PC) Diffuser Cover

Align the diffuse PC cover within the structural locking slots. Slide or press the cover firmly into the tracks until it snaps in place. Ensure the fitment is consistent along the entire length of the tube to prevent unequal structural pressure on the internal components.

Step 3: IP67 Waterproofing and End-Cap Resealing Process

Inject premium-grade, neutral-cure silicone sealant into the recess chambers of the waterproof end-caps. Feed the connection wires through the internal rubber grommet channels and press the end-cap flush against the cut face of the aluminum housing profile. Secure the assemblies using stainless steel mounting hardware.

Step 4: Final Pin Connection and Dielectric Testing

Perform an electrical resistance and dielectric withstand test (commonly called a Hi-Pot test) to verify that no high-voltage pathways short-circuit onto the aluminum extrusion. Visually inspect the silicone beads around the perimeter of the end-cap to ensure a complete hermetic seal.

Mathematical & Electrical Calculation Guidance for T8 Custom Lengths

Engineering robust customized installations requires a thorough understanding of mechanical heat limits and power dynamics. Avoid system failures by utilizing the specialized math frameworks below.

Power Supply Load Formulas and Exact Wattage Calculations per Foot

To secure a safe, stable installation, engineers must calculate cumulative power needs and leave a safety headroom for power supplies (typically 20% for Class 2 drivers under continuous load conditions).

1. Calculate Total Linear Footages:
   L_total = (Quantity of Tubes) x (Unit Length in feet)

2. Determine Max Power Consumption (P_max):
   P_max = L_total x P_ft
   Where P_ft = Power Draw per Foot (e.g., 4.5 Watts/ft for High-Efficiency 10mm PCBs)

3. Calculate Required Driver Minimum Capacity (P_driver):
   P_driver = P_max x 1.20 (Includes the standard 20% safety headroom margin)

Example:
   Given 100 units of 4ft T8 tubes running at 4.5W per foot:
   L_total  = 100 x 4 = 400 feet
   P_max    = 400 x 4.5 = 1,800 Watts
   P_driver = 1,800 x 1.20 = 2,160 Watts cumulative capability required.

Frequently Asked Questions (FAQ)

Are 10mm PCB T8 housings compatible with Smart Home ecosystems (Matter, Apple HomeKit, Amazon Alexa)?

Yes. Because our housings are physical enclosures designed to support standard 10mm LED strips, compatibility depends entirely on the LED driver and controller you choose. By populating the internal space with Matter-compatible or Zigbee-enabled 10mm smart LED strips, you can integrate your T8 linear lighting system with any modern smart home platform.

What are the exact cutting tolerances and spacing intervals per meter for 10mm LED strips?

The cutting tolerances and spacing parameters are governed by your selected PCB design. Structurally, JE's premium aluminum extrusions are cut to an ultra-precise physical tolerance of +/- 0.5mm. We advise engineering teams to leave at least 1.5mm of clearance at each end of the tube to allow for safe copper traces and terminal connection headers.

What are the critical safety instructions for maintaining IP67/IP68 Flex Certification?

To maintain high IP67/IP68 water and dust resistance over long service lifetimes, you must use high-quality neutral-cure silicone sealants that will not corrode copper traces. Always verify that external power cables are securely routed through industrial-grade rubber strain-relief glands, and run pressure differential tests on sample batches to verify seal integrity.

Elevate Your Production: Partner with Us at https://www.jeledprofile.com/led-t8-tube-housing-with-10mm-pcb.html

Whether you are designing fixtures for sensitive plant nursery arrays, cold industrial environments, or modern architectural projects, working with an experienced manufacturer makes all the difference. Explore our dedicated LED T8 tube housing with 10mm PCB technical portal to review detailed architectural blueprints, custom anodizing selections, and bulk delivery structures.
