IP65 Tri-proof Housing

The IP65 tri-proof housing produced by JE are similar to light tube kits. Customers can directly assemble PCBs, LEDs and drivers into it. The IP65 tri-proof housing is a kind of LED tube housing, the biggest feature is that it can be waterproof, dustproof and anti-corrosion. Ideal for dusty and humid places. Our this IP65 tri-proof housing has a unique design, very good waterproof effect, and has a breathing valve, which is conducive to heat dissipation. Different lengths can be provided according to customer requirements, PCBs and LEDs can be provided according to customer requirements, and a complete set of packaging can also be provided according to customer requirements. Please feel free to contact us if you have any need.

Send Inquiry

Product Description

Products Introduction

JE's IP65 tri-proof light housing can provide simple housing and accessories, and can also provide customers with SKD according to purchasing requirements. This IP65 tri-proof housing is a half-aluminum half-plastic structure. The radiator uses 6063 raw material, and the thickness of the finished product is 1.2mm, which is the thickest in the three-proof lighting industry. This design is very conducive to the heat dissipation of the lamp, so that the wattage of the whole lamp can reach 80W, which is equivalent to ordinary Two three-proof lights. The raw material of the PC diffuser is 100% new material. After extrusion molding, it is covered with a film, which can prevent scratches and collisions. The PC can be selected in two types: transparent and milky white, which can meet the needs of customers in different occasions.

Product Parameter (Specification)

Item NO.	JE-604
Length	1500mm customized
Tube	Tri-proof

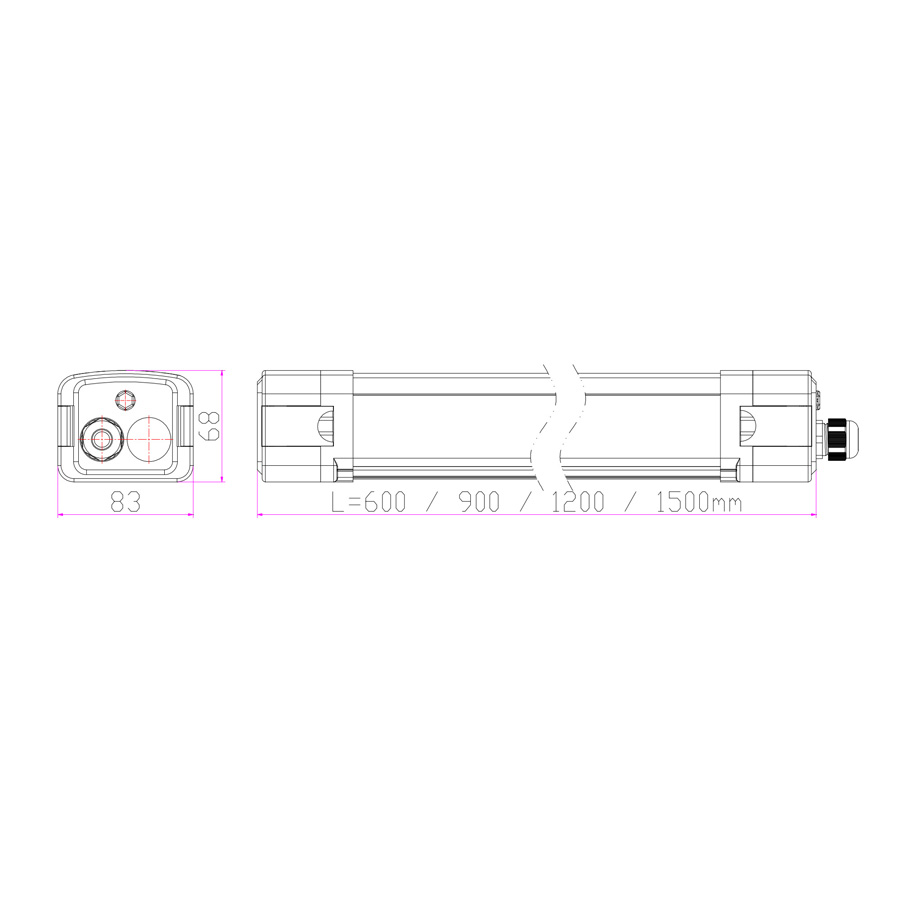

Size	15008368mm
PCB board size	1391491mm
Driver	Internal
Max height of driver	25mm
Aluminum material	6063 aluminum alloy
Aluminum base color	Silver
Plastic diffuser material	Polycarbonate
Plastic diffuser color	Frosted, Clear(transparent)
End caps	Plastic
Waterproof	IP65

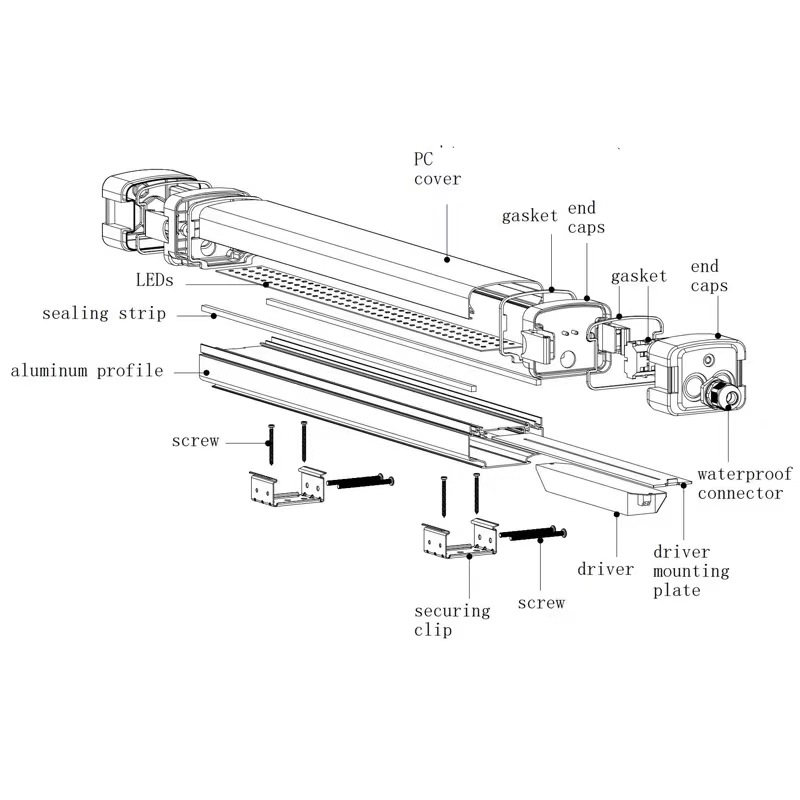

Structural components	1,Lampshade1 2,Heat sink1 3 ,PCB* 1 4 Gasket 4 5, Plug4 6, M415 Phillips pan head tapping screw 4 7,Terminal1 8,PG13.5 waterproof connector1 9,Waterproof vent valve1 10,Rubber stopper1 11,PCB size: 49*1.0mm 12,Driver Height <25mm 13,PC color: transparent/ diffuser

Product Feature And Application

IP65 LED tri-proof housing can be made into many kinds of LED tri-proof lights, this lights are generally used in places with strong corrosive, dusty and rainy industrial lighting needs, such as power plants, steel, petrochemicals, ships, stadiums, parking lots, basements, etc. Meet the needs of efficient lighting in railways, electric power, metallurgy, and various factories, stations and large facilities, venues and other places.

Product Details

More details of this IP65 LED tri-proof housing:

Product Qualification

Conventional products include T5 and T8 semi-aluminum and semi-plastic lamps, which are used to replace the previous fluorescent lights, used in underground garages, shopping malls, supermarkets, and schools' educational lighting renovations. The all-plastic aluminum-inserted lamp housing we supply meets the requirements of waterproof, dustproof and other occasions, and can reach the waterproof level of IP65; it can be made into plant lighting, used in plant factories or DIY by planting enthusiasts, and also it can be made into lamps for purification lighting in laboratories, cake gourmet shops, freezer lamps for freezers, etc...
In order to meet the harsher use environment, we have also introduced a tri-proof light housing, which can reach IP65 or above, and is widely used in garages, gas stations, supermarkets, factories, mines, and some special occasions with harsh conditions.
In the past two years, our company has been keeping up with market changes and innovating products; many linear lighting products have been added, and the aluminum base + PC cover used in conjunction with LED strips can better meet people's requirements for personalized lighting. Incorporating lighting into architectural design, our products fully meet the requirements of designers, widely used in architectural decoration, wardrobe lighting, cabinet lighting, in addition to the current public model products; there are also many customers according to their own buildings. To design the corresponding lamp shell, let us open the mold and customize it. We contribute our own strength in the linear lighting, wardrobe lighting and kitchen cabinet lighting of the building.

Deliver,Shipping And Serving

FAQ

Q1. What kinds of production can you manufacture?
Re: LED aluminum profile, LED tube housing, LED tri proof housing, special-shapes extrusion aluminum and plastic profiles.

Q2. What is the process of OEM order?
Re: Receiving drawing--Project manage confirm all production details with customer--Receiving tool production PO--Sales assistant proceed tool production--QC confirm samples are ready for shipping--Project manage confirm products with customer about every details-- start the regular order.

Q3. Is the mold opening cost borne by the customer or your factory?
Re: Customers pay the cost first, after the quantity is more than 50000 meters for total order, the tool cost can be deducted in order.

Q4. What are your normal processes for regular order?
Re: We are very suggest customers give the forecast for the next three month. This are our normal processes for regular order:
Receiving PO--Sales confirm PI with customer--Receiving 30% payment in advance--Sales assistant proceed production and confirms the exact LT--QC confirms the goods are ready for shipping--Receiving the balance payment--Arranging shipment--after sales service.

Q5. What is your term of payment?
Re: 30% payment in advance, the balance will be paid before shipment.
