LED Batten Housing

As a high quality manufacturer of LED batten housing in China, JE produces LED batten housing with stable quality and diversified styles. It is a partner and high-quality supplier of many well-known brands. LED batten housing refer to lamps that can play waterproof, dustproof and anti-corrosion effects. Because some places, such as factory workshops, basements, parking lots, etc., often have a lot of dust, and they are easy to get wet, so the LED batten light must be installed to increase the service life. The most important thing for LED batten light is the housing. The quality of the housing is good, and the LED batten housing effect of the whole lamp can be good.

Send Inquiry

Product Description

Products Introduction

LED batten light housing is the main product that many LED batten light factories purchase from JE. This LED batten housing is a half-aluminum half-plastic structure. The bottom is extruded with high-quality 6063 aluminum material, the material is thick, the heat dissipation performance is very good, and the maximum wattage can reach 72W. The PC diffuser above is made of 100% new polycarbonate raw material, which has good light transmission, UV resistance and yellowing resistance. The entire enclosure has a waterproof rating of IP65 or higher. At the same time, this European and American style snap-type installation LED batten lights, the whole lamp does not need to lead out the input wire, no tools are needed to open the front plug of the snap, the mains is directly connected to the spare terminal, and then the snap is closed to complete the installation.

Product Parameter (Specification)

Item NO.	JE-602
Length	900mm customized
Tube	Tri-proof

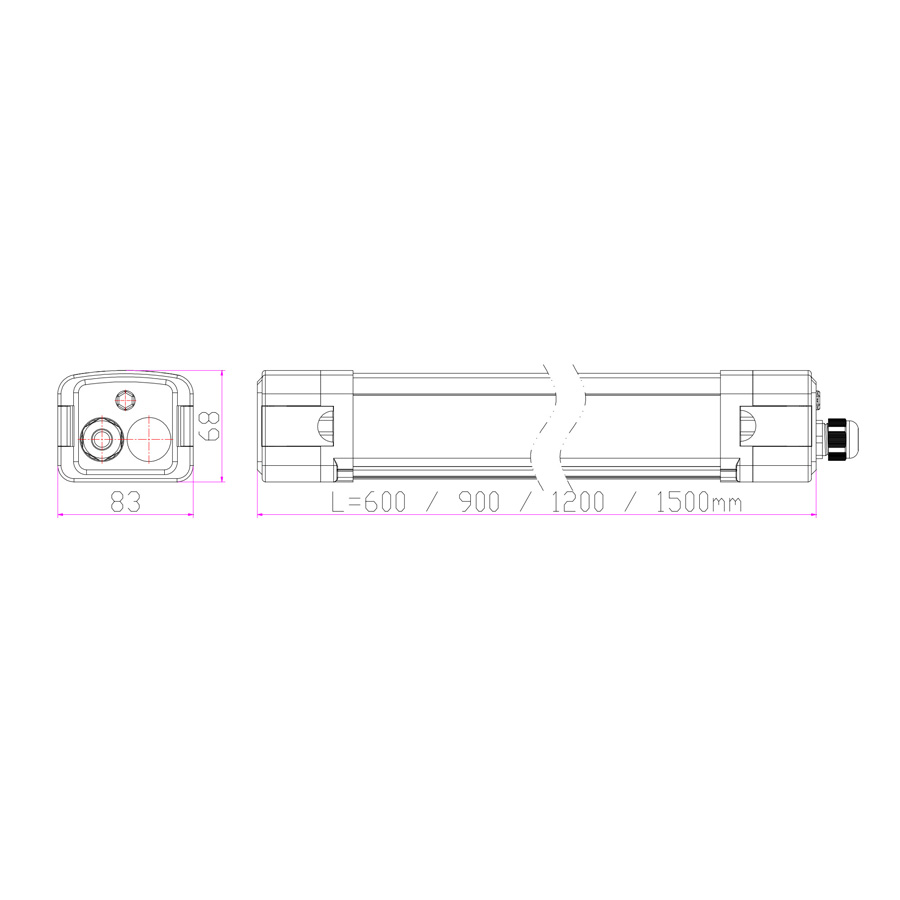

Size	9008368mm
PCB board size	791491mm
Driver	Internal
Max height of driver	25mm
Aluminum material	6063 aluminum alloy
Aluminum base color	Silver
Plastic diffuser material	Polycarbonate
Plastic diffuser color	Frosted, Clear(transparent)
End caps	Plastic
Waterproof	IP65

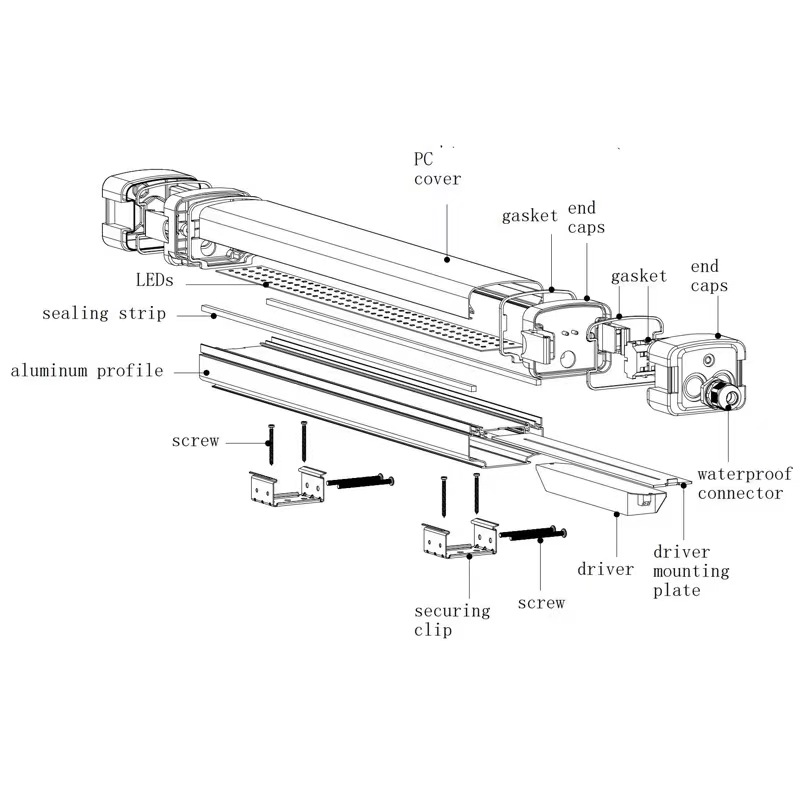

Structural components	1,Lampshade1 2,Heat sink1 3 ,PCB* 1 4 Gasket 4 5, Plug4 6, M415 Phillips pan head tapping screw 4 7,Terminal1 8,PG13.5 waterproof connector1 9,Waterproof vent valve1 10,Rubber stopper1 11,PCB size: 49*1.0mm 12,Driver Height <25mm 13,PC color: transparent/ diffuser

Product Feature And Application

LED batten housing can be made into many kinds of LED batten lights, this lights are generally used in places with strong corrosive, dusty and rainy industrial lighting needs, such as power plants, steel, petrochemicals, ships, stadiums, parking lots, basements, etc. Meet the needs of efficient lighting in railways, electric power, metallurgy, and various factories, stations and large facilities, venues and other places.

Product Details

More details of this IP65 LED batten housing:

Product Qualification

Dongguan Jinen Lighting Technology Co., Ltd. is located in Dongguan City, Guangdong Province, the "world factory". As a professional OEM&ODM LED aluminum profile and LED plastic profile extrusion manufacturer, we have more than 500 kinds of public mold products and more than 2,000 customized private mold products. It has become a leading enterprise in the industry and is deeply trusted and supported by customers. In order to improve production efficiency, we have carried out one-out-two technical upgrades for products with very large orders, which greatly improves production efficiency, reduces costs for customers, and achieves a win-win situation. The products we can produce include various special-shaped plastic profiles, PC round tubes for LED lighting, LED plastic tube diffusers, LED linear light housings, LED T5/T6/T8/T10/T12 tube housings, LED three-proof housings, LED LED aluminum profiles for light bars, etc. The materials we commonly process are PC, PMMA, ABS, PVC, etc. Most of the products are used in lighting, and some products are used in construction, decoration, packaging, toys, medical equipment and other industries.

Deliver,Shipping And Serving

FAQ

Q1. What kinds of production can you manufacture?
Re: LED aluminum profile, LED tube housing, LED tri proof housing, special-shapes extrusion aluminum and plastic profiles.

Q2. What raw material do you use for LED plastic profiles?
Re: Polycarbonate, PMMA and ABS.

Q3. If OEM & ODM are acceptable?
Re: Yes, We have various types of professional and technical personnel and enough machines that are very willing to accept OEM & ODM cooperation.

Q4. How do you ensure quality?
Re: At first, we use new raw material all with environment protection certifications, please be sure we don’t use any re-product raw material.
Second, we have professional Quality Control department, both samples and finished products must be confirmed by QC before shipment.

Q5. How do you ensure leading time?
Re: We have a professional Product Material Control(PMC) department, all orders are arranged by system.
