Industrial LED Water Proof Batten Housing
  • Industrial LED Water Proof Batten HousingIndustrial LED Water Proof Batten Housing
  • Industrial LED Water Proof Batten HousingIndustrial LED Water Proof Batten Housing

Industrial LED Water Proof Batten Housing

The feature of this industrial LED water proof batten housing is the half-aluminum and half-plastic structure, because the proportion of the aluminum casing is very large, so the heat dissipation effect is very good, so the wattage can be as high as 60 watts.

Send Inquiry

Product Description

1. Products Introduction

The feature of this is industrial LED water proof batten housing the half-aluminum and half-plastic structure, because the proportion of the aluminum casing is very large, so the heat dissipation effect is very good, so the wattage can be as high as 60 watts. This product is mainly designed for industrial places. First of all, industrial places have very high requirements on the use environment of lamps, and need to achieve the effect of three defenses, waterproof, dustproof, and anti-corrosion. This lamp can fully meet these requirements. Secondly, the area of industrial sites is generally large, and the floors are much higher than the houses. This requires high-wattage lamps to illuminate the working environment. The 60-watt LED is equivalent to 360 watts of white light, which can fully meet the needs of customers for lighting.

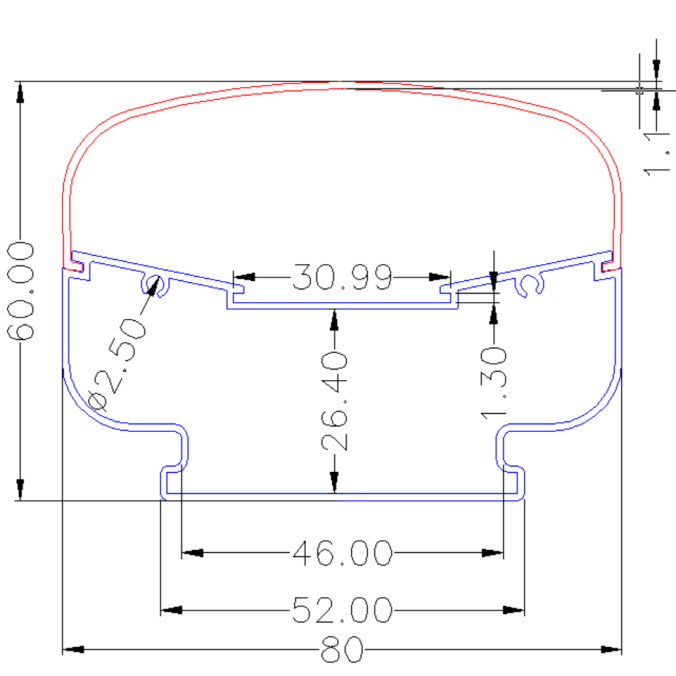

2.Product Parameter (Specification)

Item NO.

JE-216

Length

600mm, 900mm, 1200mm, 1500mm, 2400mm or customized

Tube

Tri-proof

Diameter

/

PCB board size

30*1.0mm

Driver

Internal

Max height of driver

25mm

Inner aluminum material

6063 aluminum alloy

Inner aluminum base color

Silver

Plastic tube material

Polycarbonate

Plastic tube color

Frosted, Clear(transparent)

End caps

Plastic

Waterproof

IP54

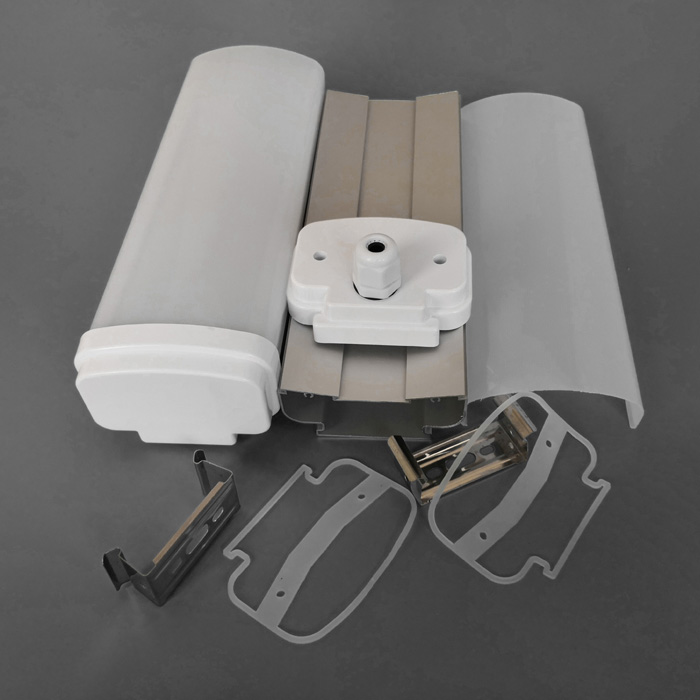

Structural components

Aluminium *1

PC Cover*1

caps*2

waterproof joint*2

silicone pad *2

hanging board*2

screws*4


3.Product Feature And Application

This JE216 industrial LED water proof batten housing is widely used in store, gas station, factory, car wash, warehouse, parking lot and so on.


4. Product Qualification

As a LED Aluminum Profile and LED plastic profile professional manufacturer, here are our main machines:
1.20 plastic extrusion machines,
2.5 aluminum extrusion machines,
3.3 of injection molding machines,
4.5 of precision mold manufacturing equipment,
5.A professional integrating sphere to test whether the lamps made by our lamp kit can meet the various indicators required by customers,
6.A professional standard light source testing equipment for testing the light transmittance and other properties of plastic lampshades.
JE always focus on product qualification from aluminum and plastic raw material to extrusion production line, from samples quality control to mass production control, from strong perfect package to whole-heart service.


5. Deliver,Shipping And Serving
