Waterproof LED T10 Tube Light Housing
  • Waterproof LED T10 Tube Light HousingWaterproof LED T10 Tube Light Housing
  • Waterproof LED T10 Tube Light HousingWaterproof LED T10 Tube Light Housing
  • Waterproof LED T10 Tube Light HousingWaterproof LED T10 Tube Light Housing
  • Waterproof LED T10 Tube Light HousingWaterproof LED T10 Tube Light Housing
  • Waterproof LED T10 Tube Light HousingWaterproof LED T10 Tube Light Housing
  • Waterproof LED T10 Tube Light HousingWaterproof LED T10 Tube Light Housing

Waterproof LED T10 Tube Light Housing

This waterproof LED T10 tube light housing can be made non-waterproof or waterproof. JE LED Profile CO., LTD is a professional OEM&ODM LED aluminum profiles and LED plastic profiles extrusion manufacturer. We have 20 plastic extrusion machines, 5 of aluminum extrusion production lines, 3 of injection molding machines, 5 of precision mold manufacturing machines, 2 of test equipment(integrating sphere and Color Assessment Cabinet).

Send Inquiry

Product Description

1. Products Introduction

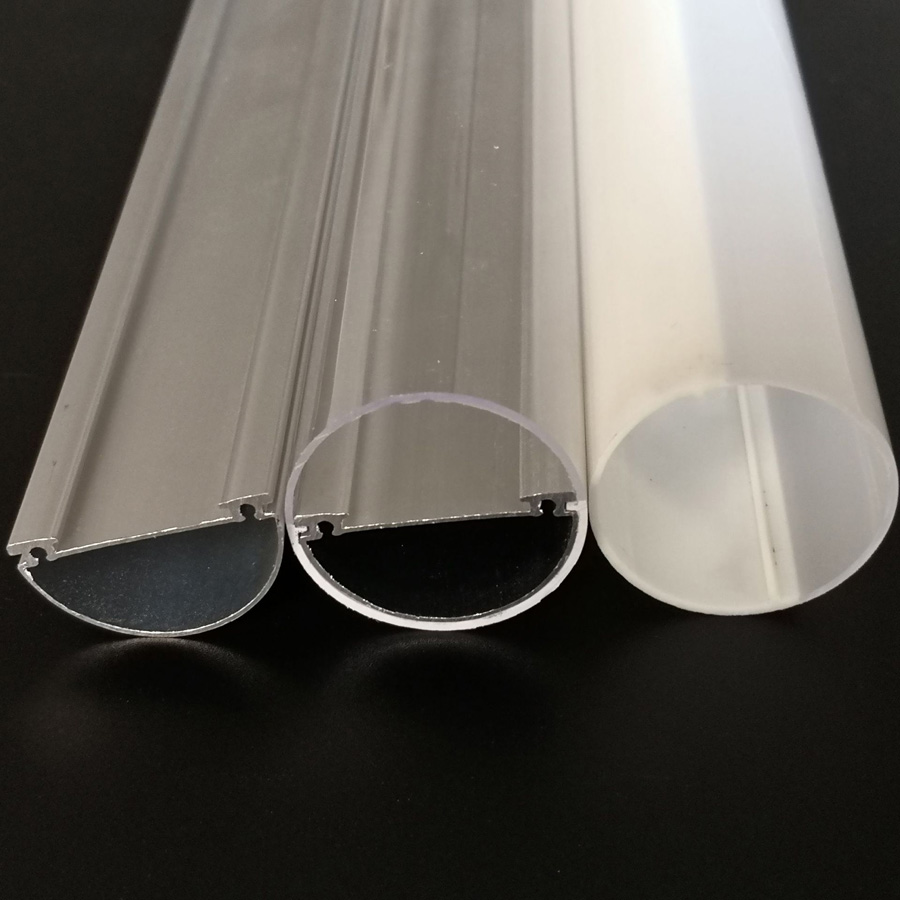

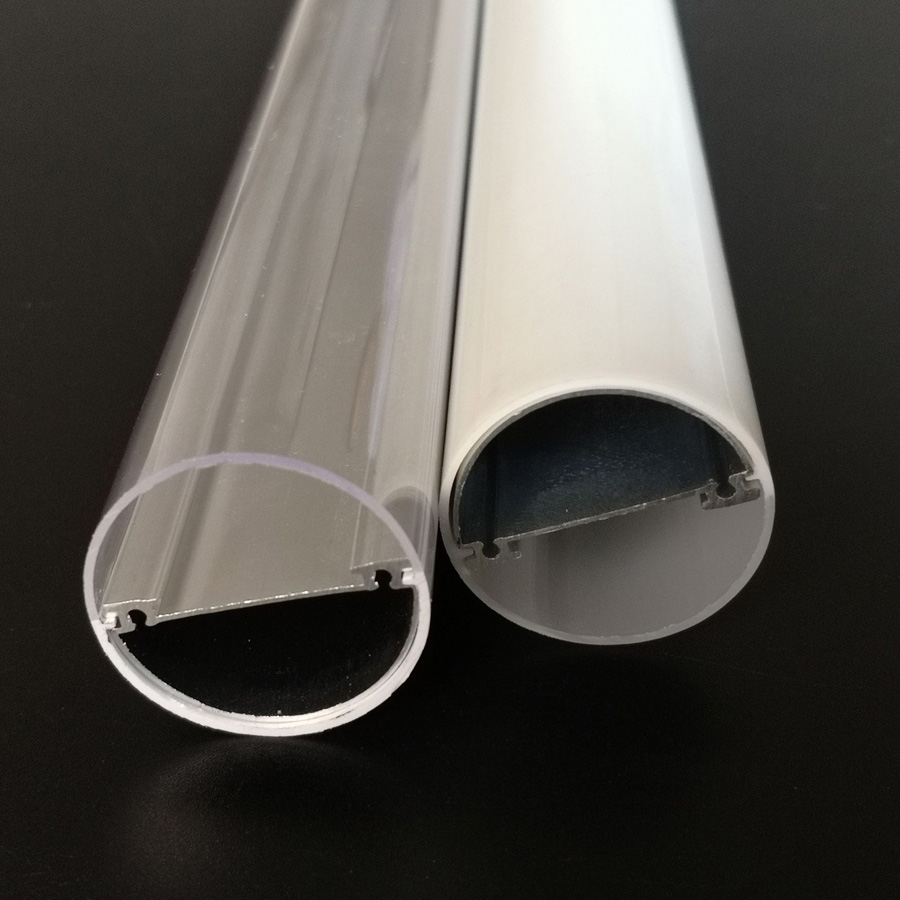

The shell of this JE-33 waterproof LED T10 tube light housing is pure polycarbonate, the thickness of the diffuser cover can be between 0.6mm - 2.0mm, and there are many advantages:
1.High light transmittance: 85%-95% transparency
2.High cold resistance: -30 -120 ℃.
3. Good flexibility: strong impact resistance, not easy to deform.
4. Surface into the peritoneal treatment, not shaving.

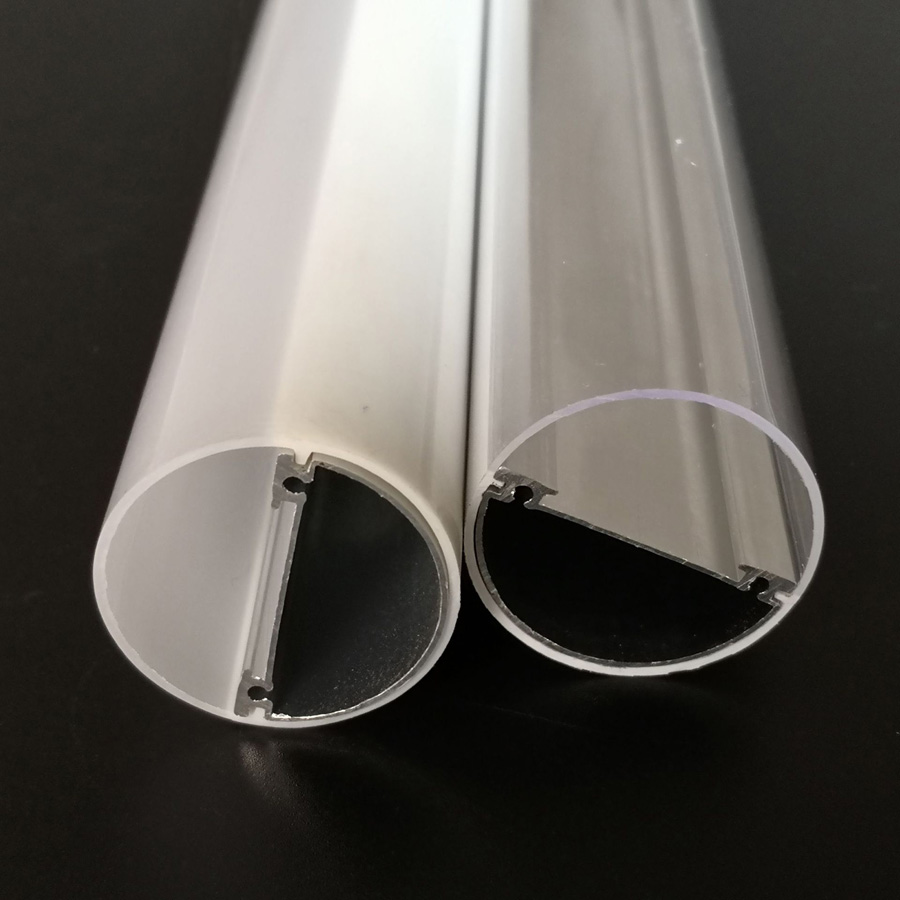

And there is also a aluminum base in PC tube, we use high-quality thickened aluminum profiles that have the following advantage
1, very suitable for heat dissipation,
2, the surface is oxidized, the smoothness is high,
3, aluminum tube without black, no water marks.


2.Product Parameter (Specification)

Length

600mm, 900mm, 1200mm, 1500mm, 2400mm or customized

Tube

T10

Diameter

30mm

PCB board size

18.5*1.0mm

Driver

Internal

Max height of driver

12mm

Aluminum base material

6063 aluminum alloy

Aluminum base color

Silver

Plastic tube material

Polycarbonate

Plastic tube color

Frosted, Clear(transparent)

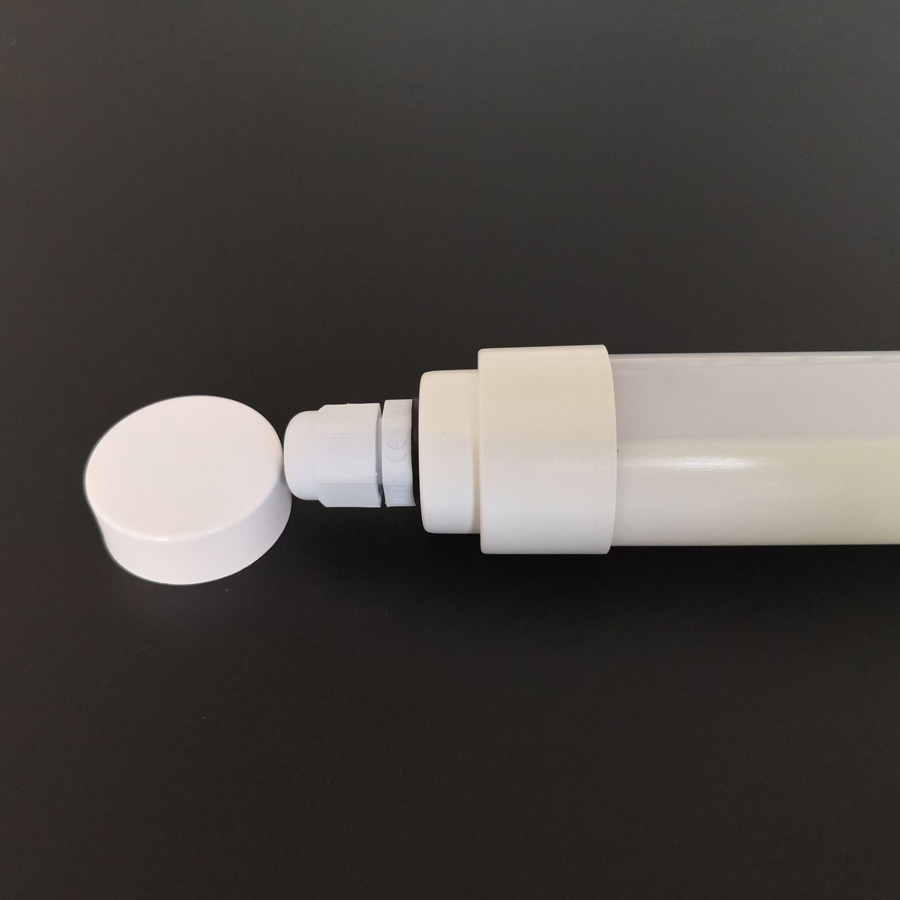

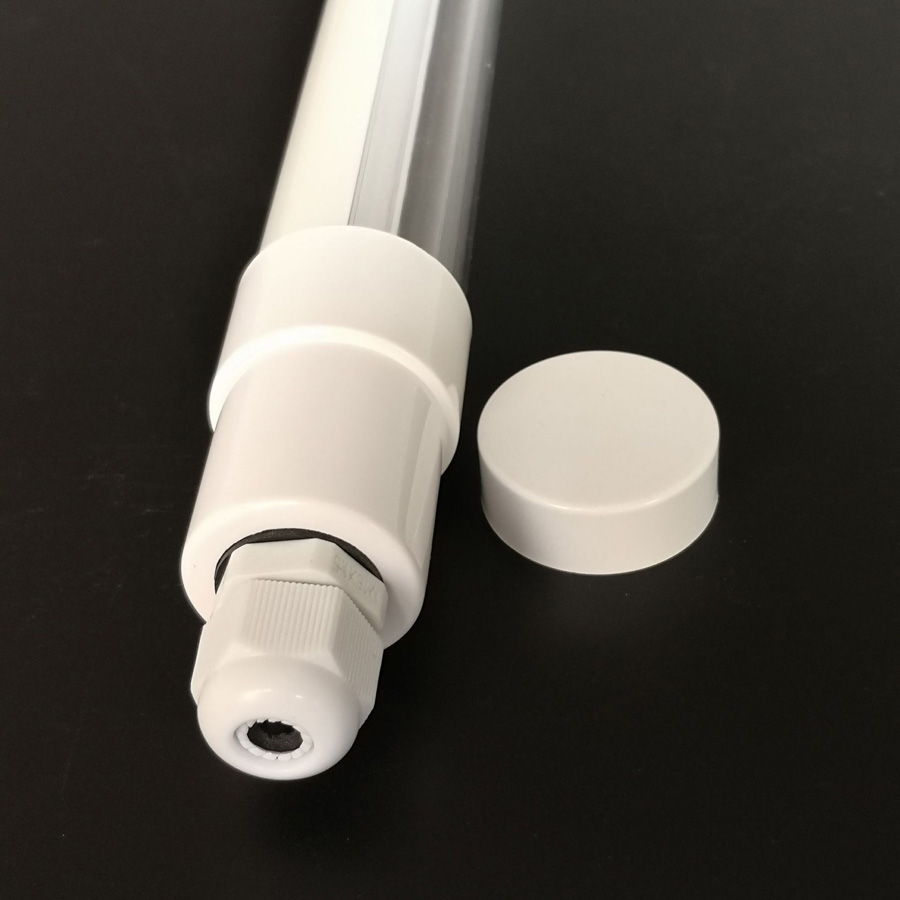

End caps

Plastic

Waterproof

IP20 or IP65


3.Product Feature And Application

This JE-33 waterproof LED T10 tube light housing is widely used in store, office,auditorium, show room, class room, supper market and so on.


4. Product Details

More details of this JE-32 LED T12 tube housing half aluminum half plastic:


5. Product Qualification

As a LED Aluminum Profile and LED plastic profile professional manufacturer, here are our main machines:
1.20 plastic extrusion machines
2.5 aluminum extrusion machines,
3.A professional integrating sphere to test whether the lamps made by our lamp kit can meet the various indicators required by customers,
4.A professional standard light source testing equipment for testing the light transmittance and other properties of plastic lampshades.
JE always focus on product qualification from aluminum and plastic raw material to extrusion production line, from samples quality control to mass production control, from strong perfect package to whole-heart service.


6. Deliver,Shipping And Serving



7.FAQ

Q1. Can Your products be installed under the cold weather?
Re: Yes, Weather resistance of PC is -40 degree to 120 degree.

Q2. Will the product deform during transportation?
Re: No, please be sure our professional package.

Q3. How are you products installed?
Re: We have recessed mounted type and surface mounted type, there are a little difference for each products.

Q4. Do you have any products for LED strips?
Re: Yes, we have many kinds of LED aluminum profiles for LED strips.

Q5. What is process of OEM order?
Re: Receiving drawing--Project manage confirm all production details with customer--Receiving tool production PO--Sales assistant proceed tool production--QC confirm samples are ready for shipping--Project manage confirm products with customer about every details-- start the regular order.
