LED T12 Plastic Tube and Double Circuit Board Aluminum
  • LED T12 Plastic Tube and Double Circuit Board AluminumLED T12 Plastic Tube and Double Circuit Board Aluminum
  • LED T12 Plastic Tube and Double Circuit Board AluminumLED T12 Plastic Tube and Double Circuit Board Aluminum
  • LED T12 Plastic Tube and Double Circuit Board AluminumLED T12 Plastic Tube and Double Circuit Board Aluminum
  • LED T12 Plastic Tube and Double Circuit Board AluminumLED T12 Plastic Tube and Double Circuit Board Aluminum
  • LED T12 Plastic Tube and Double Circuit Board AluminumLED T12 Plastic Tube and Double Circuit Board Aluminum
  • LED T12 Plastic Tube and Double Circuit Board AluminumLED T12 Plastic Tube and Double Circuit Board Aluminum
  • LED T12 Plastic Tube and Double Circuit Board AluminumLED T12 Plastic Tube and Double Circuit Board Aluminum

LED T12 Plastic Tube and Double Circuit Board Aluminum

JE is a professional OEM&ODM LED tube housing extrusion manufacturer, is a one-stop manufacturer of LED tube housing supplier in China. This LED T12 plastic tube and double circuit board aluminum is a full plastic tube outside with an aluminum profile inside, can be made non-waterproof or waterproof. The structure design of this double PCB board greatly improves the design space of the lamp wattage. If you need more LED tube housings, please feel free to contact us, we sincerely look forward to working with you.

Send Inquiry

Product Description

1. Products Introduction

JE has complete production equipment for LED tube housing and a professional customized design team. The shell of this JE-34 LED T12 plastic tube and double circuit board aluminum is pure PC (polycarbonate), the thickness of the diffuser cover can be between 0.6mm - 2.0mm, and there are many advantages:

1. High light transmittance: the transparency of the pure milky white cover can reach more than 85%, and the pure transparent cover can reach more than 95%.
2. High cold resistance: low temperature resistance -30 ℃, high temperature resistance 80-120 ℃.
3. Good flexibility: strong impact resistance, not easy to deform.

4. Perfect appearance: The product has high finish, no black spots, no stretch marks, no water waves, and the pass rate is over 95%

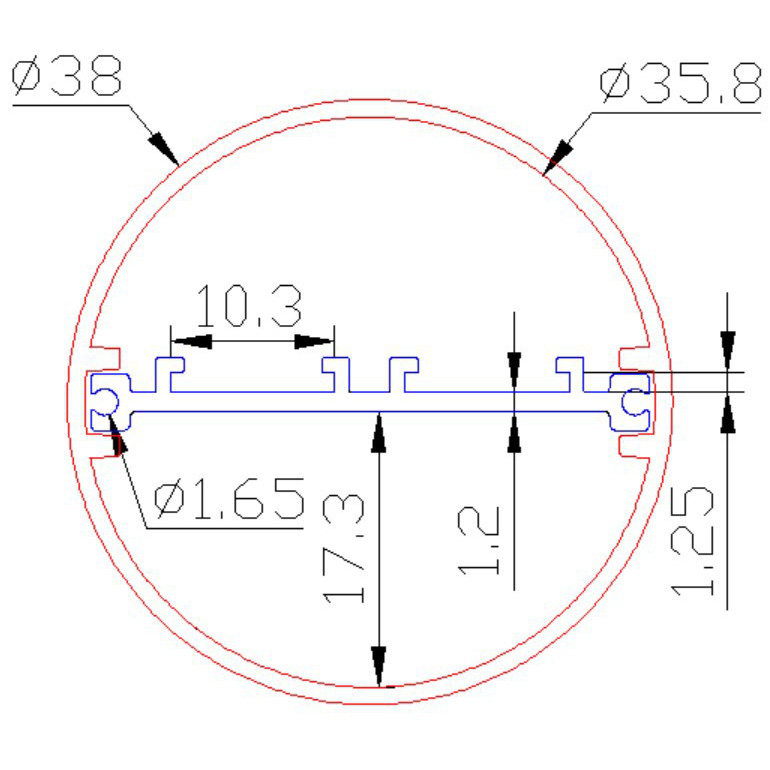

2.Product Parameter (Specification)

Length

600mm, 900mm, 1200mm, 1500mm, 2400mm or customized

Tube

T12

Diameter

38mm

PCB board size

10*1.0mm+10*1.0mm

Driver

Internal

Max height of driver

16mm

Inner aluminum material

6063 aluminum alloy

Inner aluminum base color

Silver

Plastic tube material

Polycarbonate

Plastic tube color

Frosted, Clear(transparent)

End caps

Plastic

Waterproof

IP20 or IP65


3.Product Feature And Application

ThisJE-34 LED T12 plastic tube and double circuit board aluminum is widely used in store, office, auditorium, show room, class room, supper market, parking lot and so on.


4. Product Details

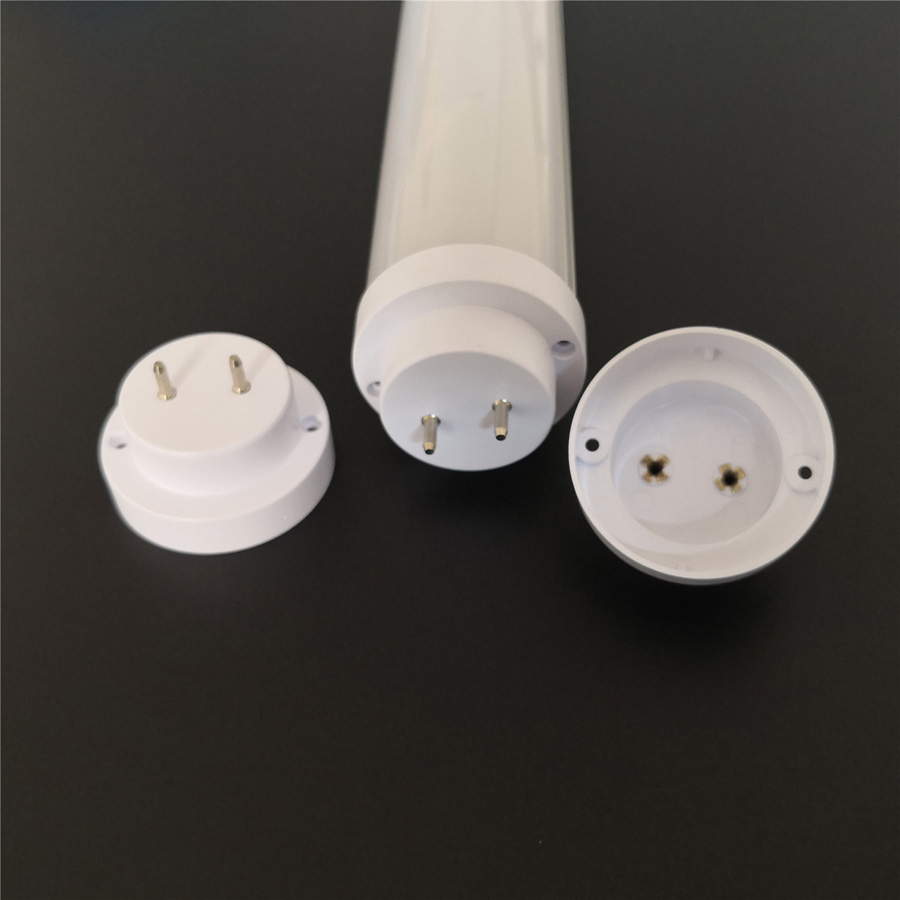

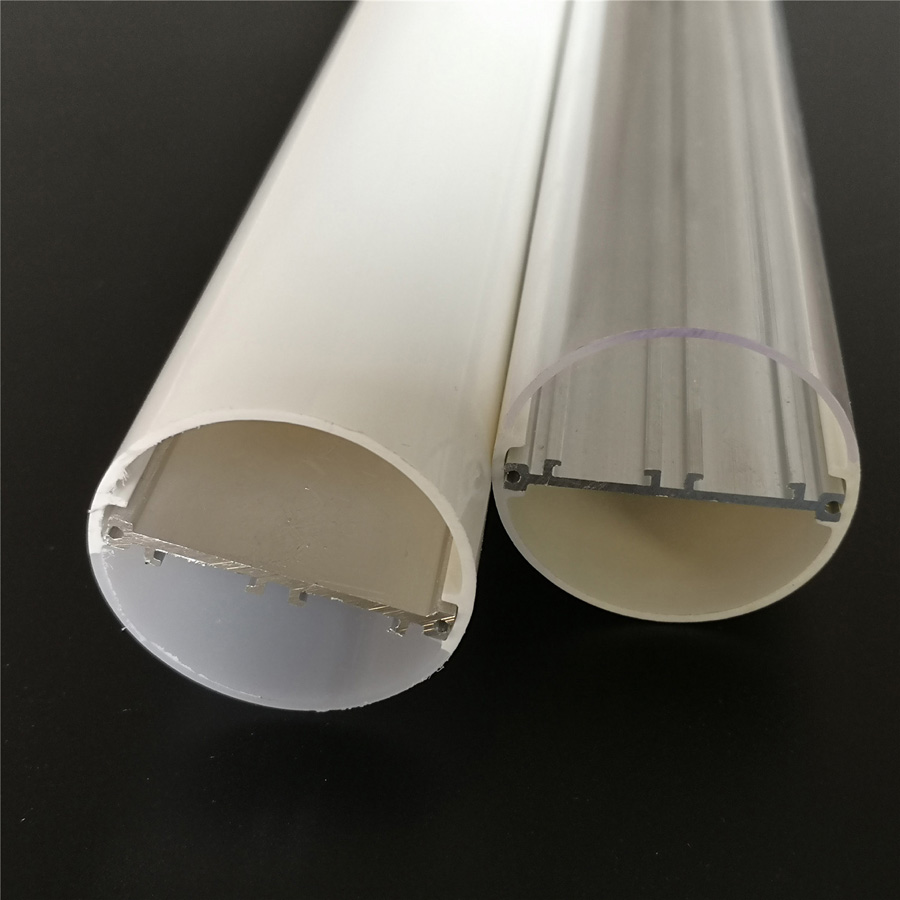

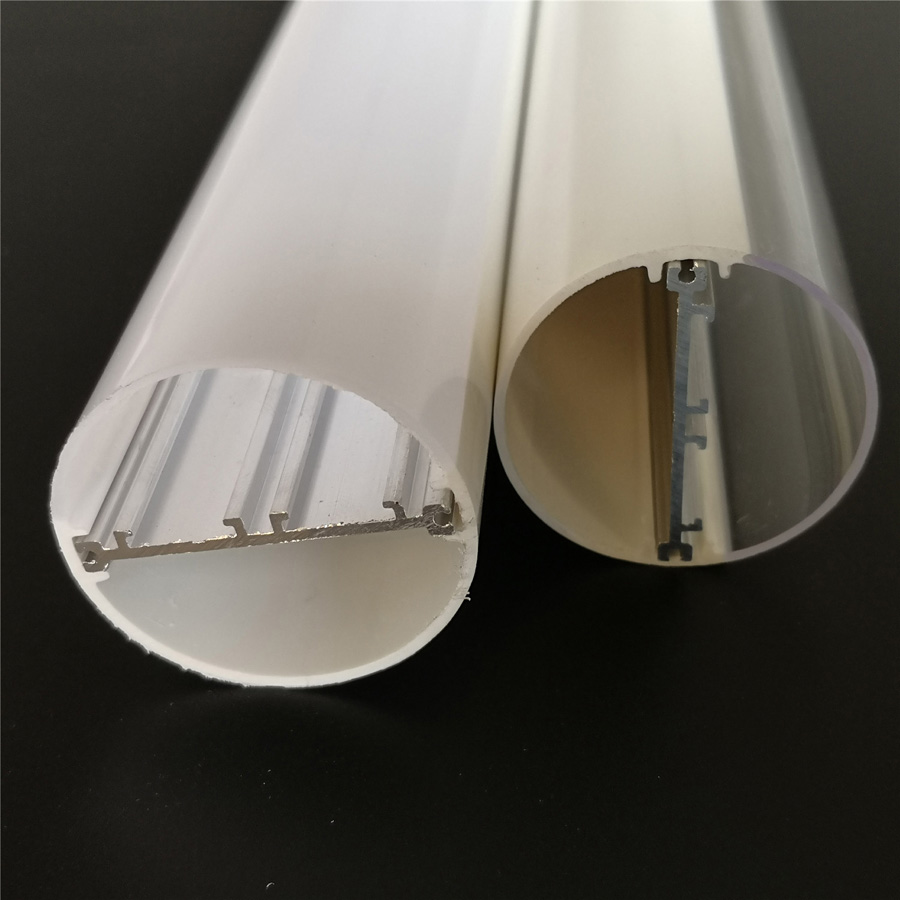

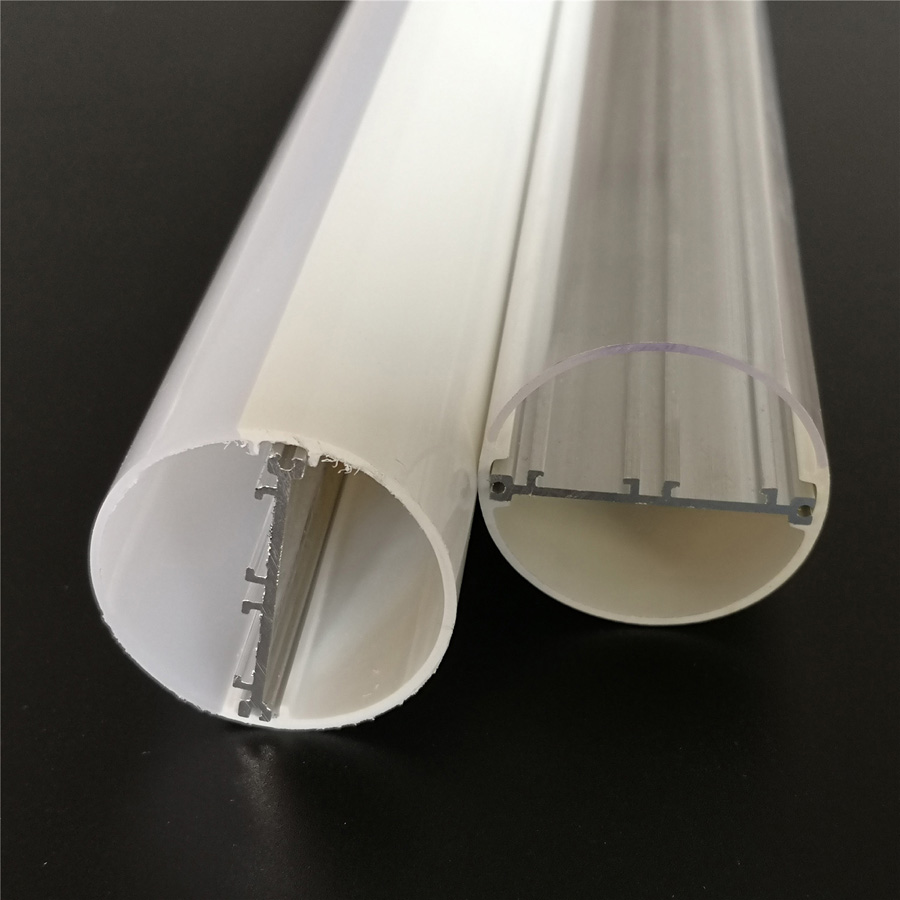

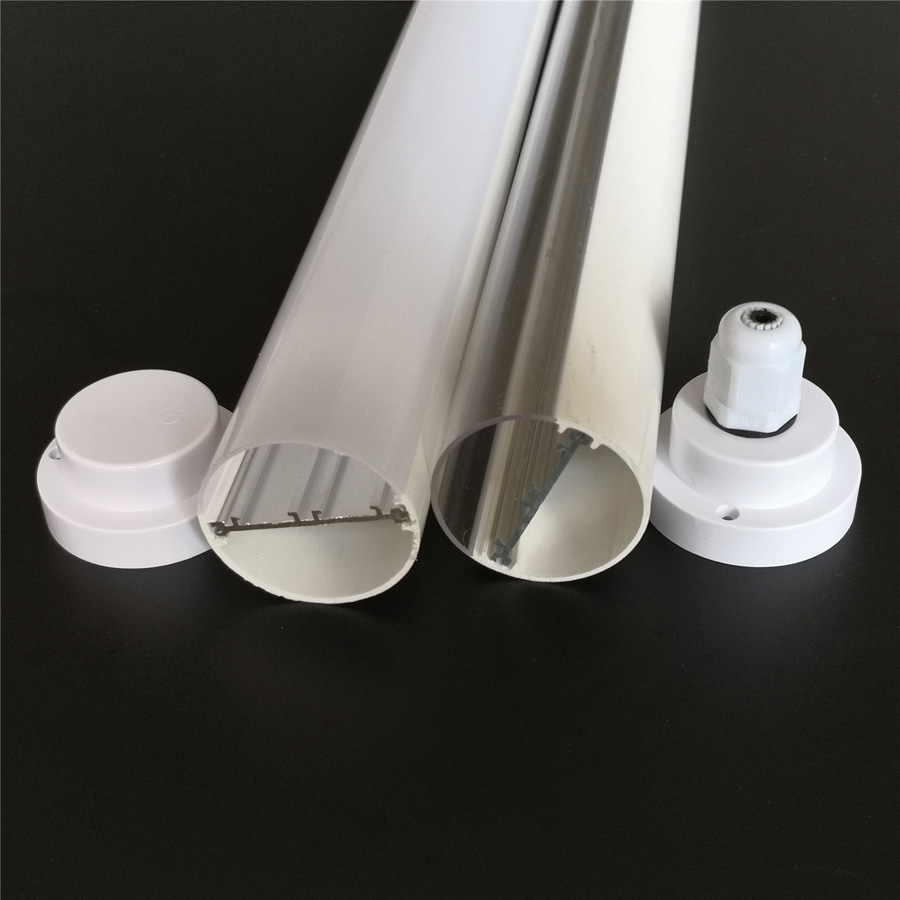

More details of this JE-34 LED T12 plastic tube and double circuit board aluminum:


5. Product Qualification

As a LED Aluminum Profile and LED plastic profile professional manufacturer, here are our main machines:
1.20 plastic extrusion machines
2.5 aluminum extrusion machines,
3.A professional integrating sphere to test whether the lamps made by our lamp kit can meet the various indicators required by customers,
4.A professional standard light source testing equipment for testing the light transmittance and other properties of plastic lampshades.
JE always focus on product qualification from aluminum and plastic raw material to extrusion production line, from samples quality control to mass production control, from strong perfect package to whole-heart service.


6. Deliver,Shipping And Serving



7.FAQ

Q1. How many days is the tool production of LED aluminum and plastic profile?
Re: Usually 7-15 days.

Q2. What is your normal processes for regular order?
Re: We are very suggest customer give the forecast for the next three month. This are our normal processes for regular order:
Receiving PO--Sales confirm PI with customer--Receiving 30% payment in advance--Sales assistant proceed production and confirm the exact LT--QC confirm the goods are ready for shipping--Receiving the balance payment--Arranging shipment--after sales service.

Q3. What is process of OEM order?
Re: Receiving drawing--Project manage confirm all production details with customer--Receiving tool production PO--Sales assistant proceed tool production--QC confirm samples are ready for shipping--Project manage confirm products with customer about every details-- start the regular order.

Q4. How do you ensure quality?
Re: At first, we use new raw material all with environment protection certifications, please be sure we don’t use any re-product raw material.
Second, we have professional Quality Control department, both samples and finished products must be confirmed by QC before shipment.

Q5. How do you ensure leading time?
Re: We have professional Product Material Control(PMC) department, all orders are arranged by system.
