What is a G13 End Cap for LED Tube?

When people talk about LED tube lights, they usually focus on chips, drivers, lumens, and warranty. The end cap? It barely gets a mention. But ask anyone who has installed thousands of tubes, and they’ll tell you: the end cap is where projects succeed or fail. If the pins don’t line up or the plastic cracks, the tube is useless.

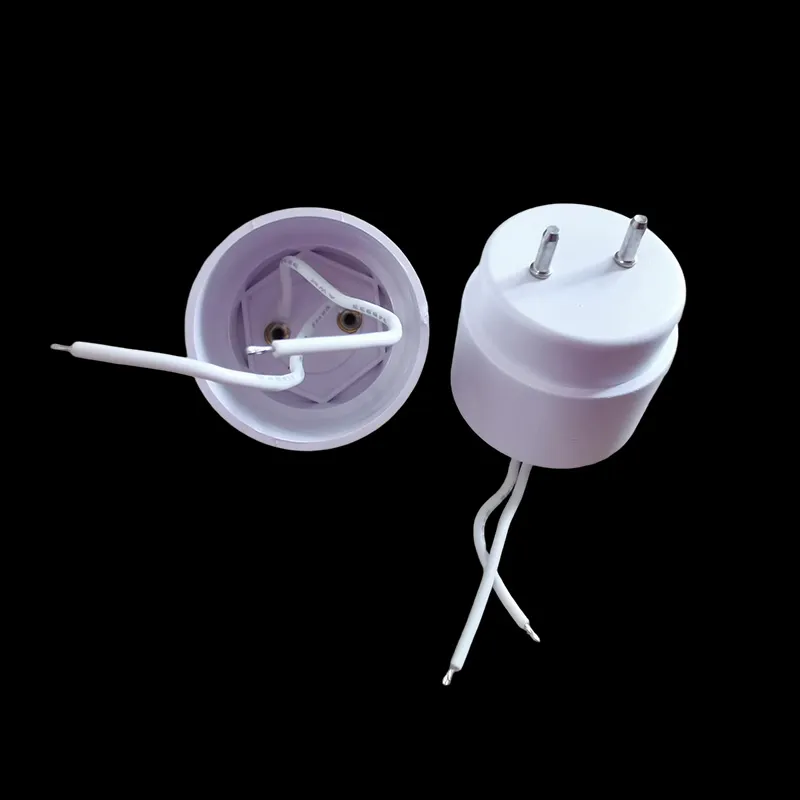

So what exactly is a G13 end cap for LED tube? In plain terms, it’s the base at the end of a tubular LED lamp that connects the tube to the fixture. The “G” stands for the pin type, and “13” refers to the pin spacing—about 12.7 millimeters, or half an inch, from center to center. That two-pin configuration has been the standard for fluorescent tubes for decades, and it carried over into LED replacements. If you’ve ever changed a tube in an office ceiling, you’ve handled a G13 end cap for a LED tube.

It sounds simple. It isn’t. A G13 end cap has to do three jobs at once: hold the tube mechanically, deliver electrical current safely, and survive heat, moisture, and the occasional clumsy installer. Get any of those wrong, and you get flickering lights, failed connections, or worse.

The G13 standard is shared across T5, T8, T10, and T12 tubes, but that doesn’t mean one cap fits all. The pin spacing stays the same, while the cap body changes to match the tube’s diameter. A T8 tube is about 26mm wide; a T12 is closer to 38mm. So a T12 G13 end cap is a different animal from a T8 G13 end cap, even though both have the same two pins.

In the field, G13 end caps come in several flavors. Fixed caps are the most common—simple, reliable, and cheap. Rotatable caps let installers twist the tube to the right angle after mounting, which is a lifesaver in fixtures where the socket orientation isn’t perfect. Waterproof caps, rated IP65 or higher, use sealed nuts and gaskets for outdoor lighting, grow rooms, cold storage, and car washes. Aluminum caps show up on high-wattage tubes where heat management matters. And then there are custom caps, which is where things get interesting.

That’s the world JE works in. Based in Dongguan, Guangdong—often called the “world factory”—JE has been making LED tube end caps since 2017. The company doesn’t spread itself across every lighting accessory. G13 end caps for LED tube are its core business. Over the years, JE has built up hundreds of public molds covering T5, T8, T10, and T12 tubes, plus the tooling to develop new designs when a customer needs something that doesn’t exist yet.

The pitch is not just variety. It’s consistency. “Anyone can make a good sample,” says a JE representative. “The challenge is making the ten-thousandth piece fit exactly like the first one.” That focus on quality stability is why the company says its two guiding policies are never-ending improvement and striving for zero defects. In a market where buyers often switch suppliers to save a fraction of a cent, JE argues that the real cost is in returns, rework, and damaged reputation.

Materials matter, too. JE uses imported PC for injection molding, which produces caps free of impurities, water stains, and deformation. PC handles temperatures from -30°C to 130°C, so it doesn’t yellow or crack easily. For high-power tubes, the company switches to aluminum for better heat dissipation. Standard colors include white, blue, green, silver, and gold, with custom lengths available.

Where do these caps end up? Everywhere. Hotels, supermarkets, offices, factories, warehouses, parking garages, plant growth operations, light boxes, and outdoor linear fixtures. The LED tube market keeps evolving, but the G13 interface isn’t going anywhere soon. Millions of existing fixtures still use it, and retrofits will keep demand alive for years.

For buyers, the takeaway is straightforward. The G13 end cap is a small part with an outsized role. It determines whether a tube installs smoothly, whether it stays lit, and whether it lasts. Choosing a supplier with real tooling, R&D, and quality control is not overkill. It’s common sense.

JE continues to supply G13 end caps to lighting brands and tube manufacturers worldwide, from standard fixed caps to waterproof and custom designs. For anyone sourcing LED tube components, the company is worth a look. After all, the end cap may be the last thing you notice on a tube—but it’s one of the first things that decides if the tube works.

JE is a factory specializing in the production of G13 end caps for LED tube, for more details, please refer to:
