Waterproof Nuts for LED Tubes

JE Company manufactures waterproof nuts for LED tubes, primarily made of nylon. Nylon offers several significant advantages: firstly, its water absorption rate is only about 4%, allowing water droplets to roll off naturally and preventing penetration; secondly, nylon's waterproofing relies on its inherent water-repellent properties, unlike coated fabrics which may peel, harden, or crack over time; and finally, nylon is chemically inert and resistant to acids and alkalis, preventing rusting like ordinary carbon steel in humid or salt spray environments, making it ideal for outdoor, marine, and electroplating applications. These advantages enable the entire tube to achieve an IP65 protection rating, suitable for modern LED plant lighting and other applications requiring waterproof lighting.

Product Features

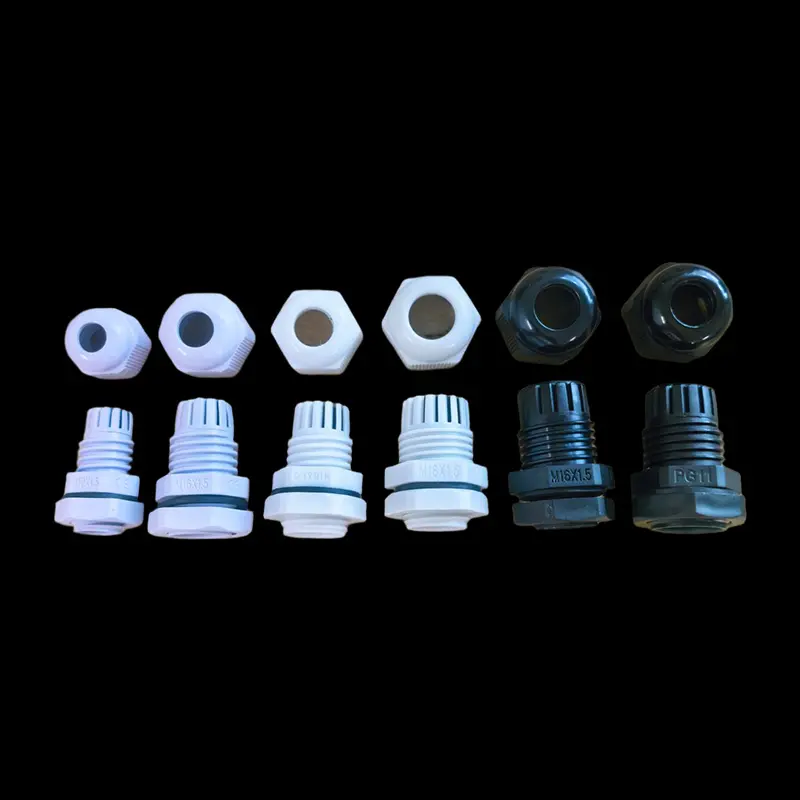

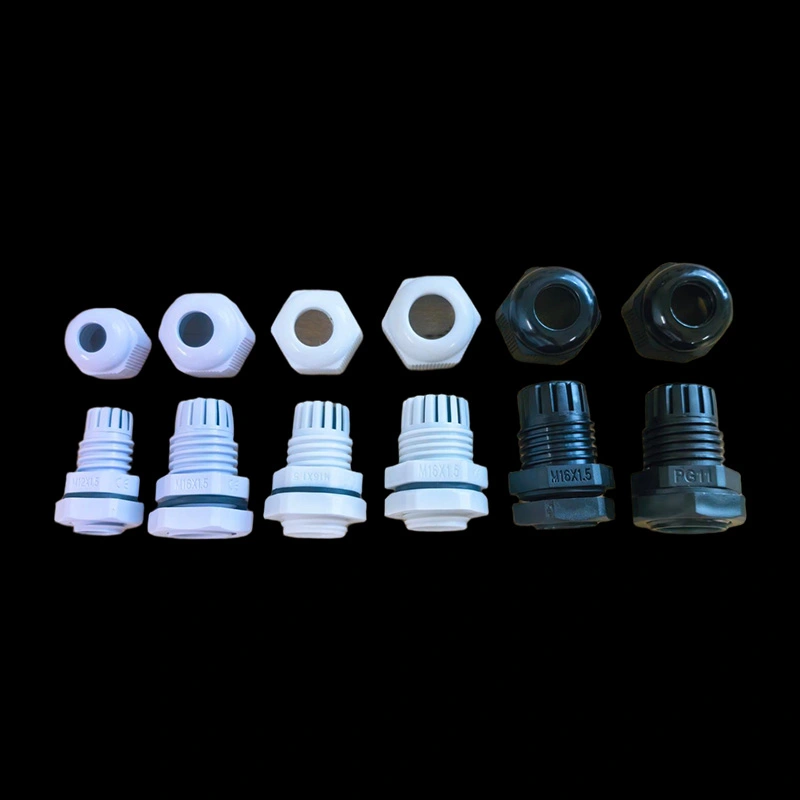

Sizes of Waterproof Nuts for LED Tubes

Here's the thing. The size of the waterproof nut isn't about the nut itself. It's about your cable. You pick the nut based on your wire diameter, not the other way around.

The two most common sizes you'll run into are M12 and M16.

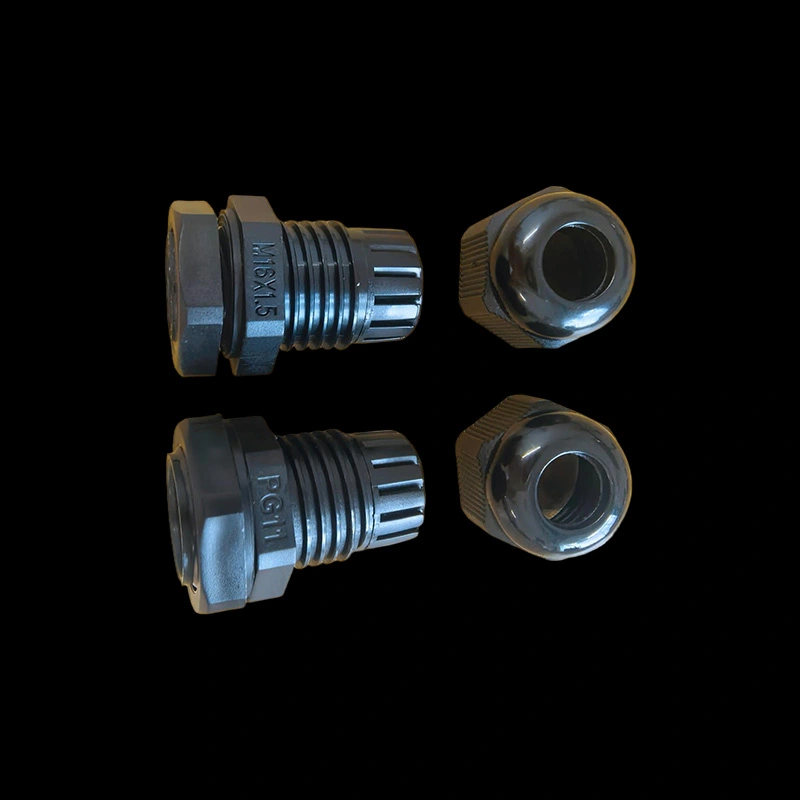

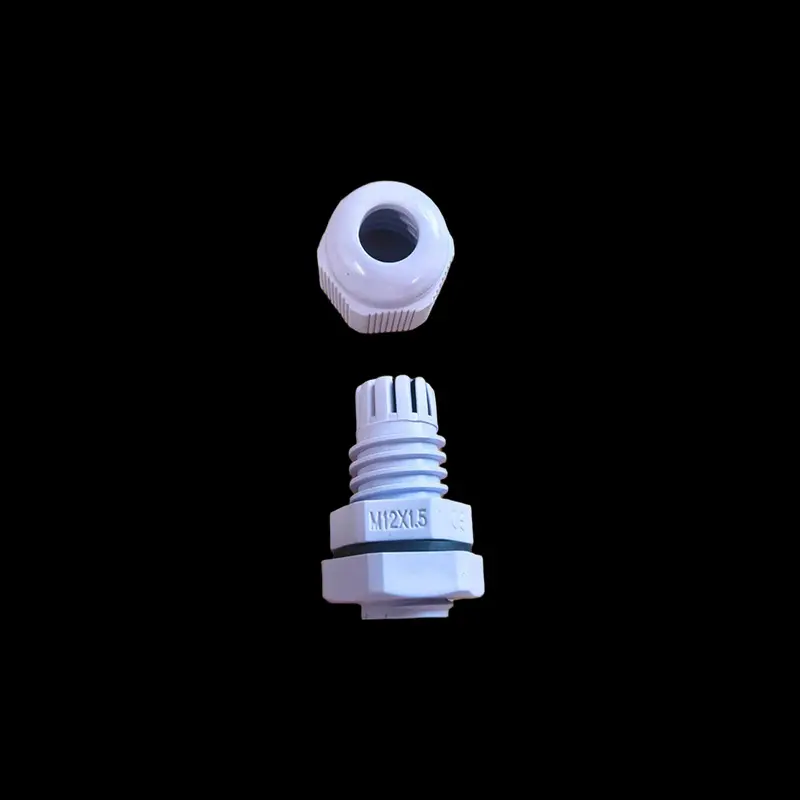

M12 × 1.5 — fits cables from 3 to 6.5 mm. This is your standard choice for most T5, T8, and T10 LED tubes. Thread outer diameter is 12 mm, thread length about 8.5 mm, and the wrench size is 15 mm.

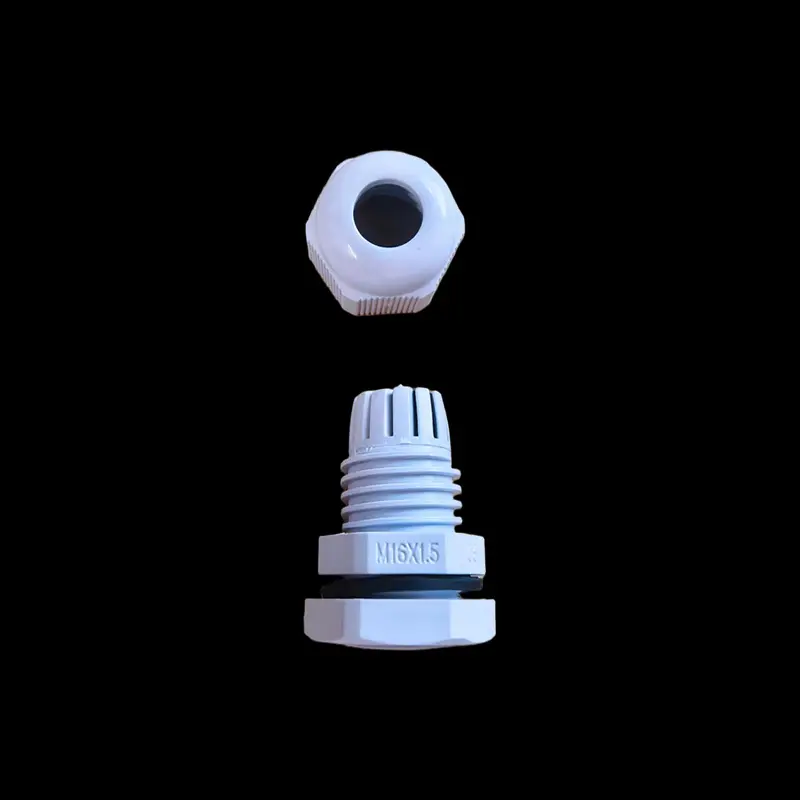

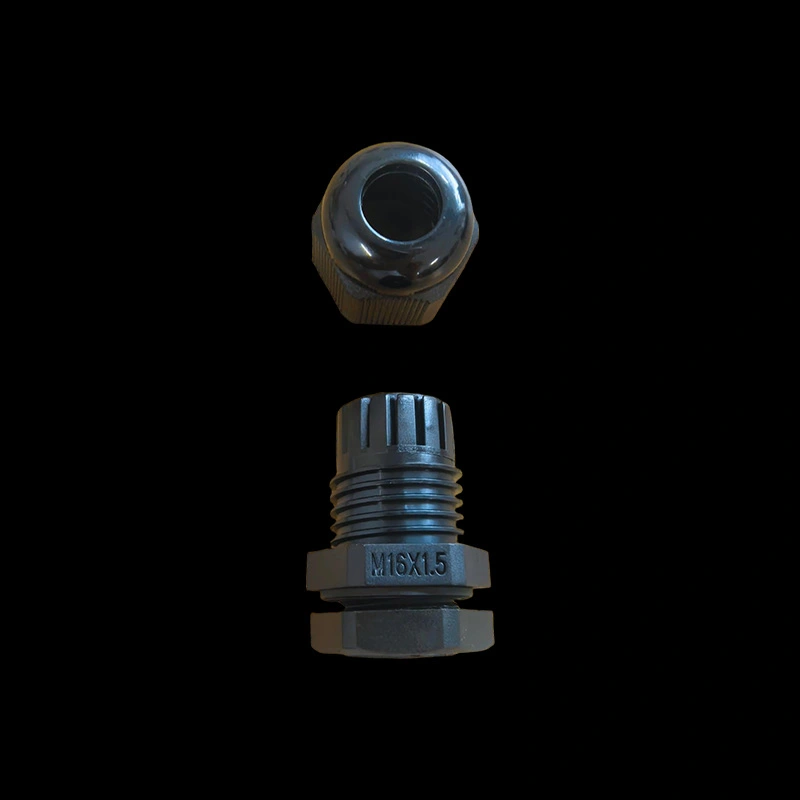

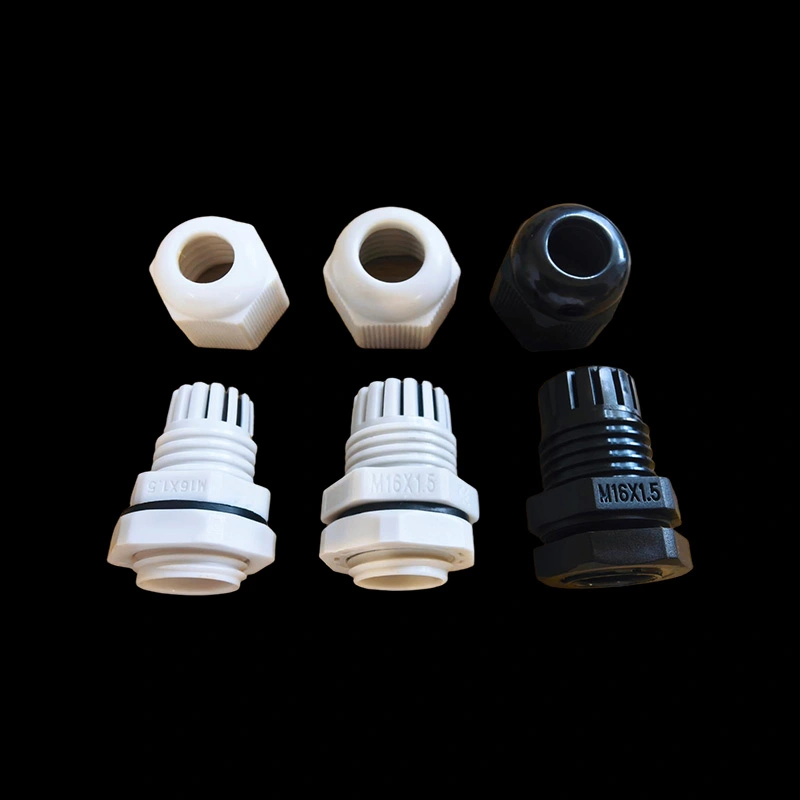

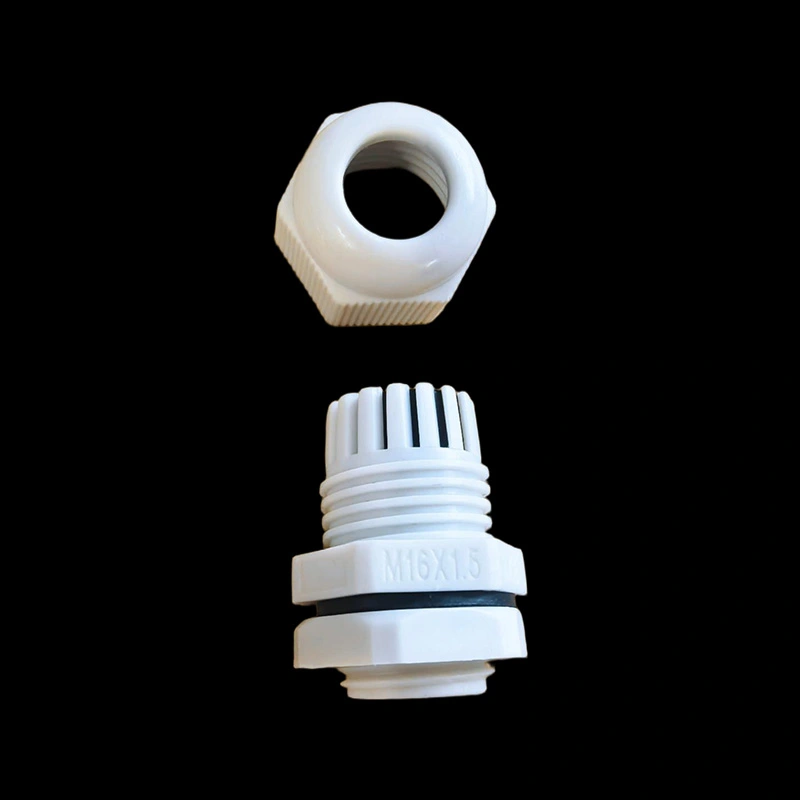

M16 × 1.5 — fits cables from 4 to 8 mm. If your wire is a bit thicker, you step up to this. Thread O.D. is 16 mm, thread length 9 mm, wrench size 19 mm. Some suppliers offer a "big head" version of M16 that goes up to 10 mm cable diameter, but that's less common.

That's pretty much it for the standard stuff. There are bigger sizes like M20 and M25 for industrial fixtures, but for regular LED tube production, M12 and M16 cover almost everything.

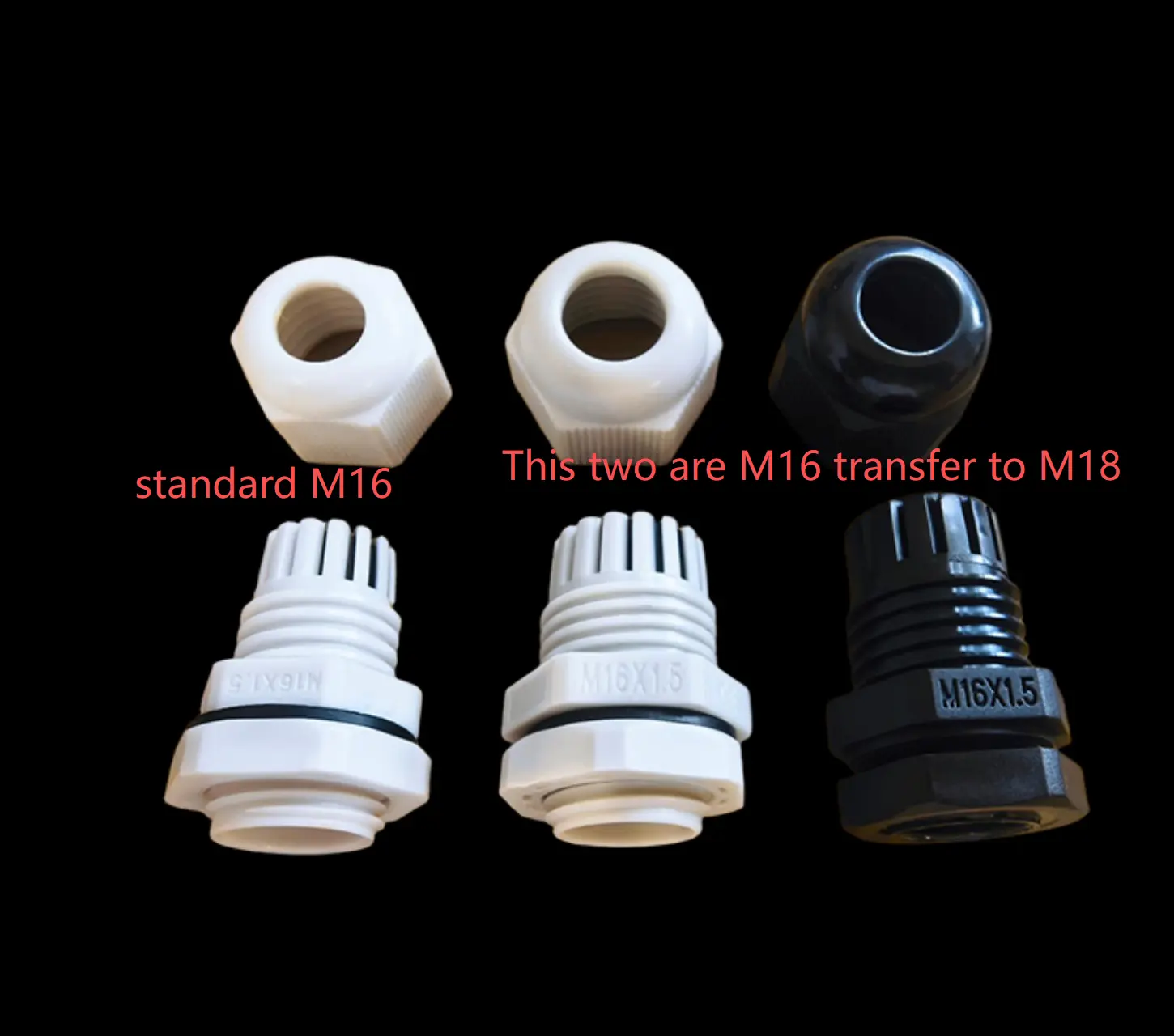

There are also some special projects that require the use of M16 to M18 waterproof nuts because they require a larger wire diameter.

Applications

Please note the following when using:

Do not overtighten. I've seen people tighten them like they're changing a car tire, which can crack the plastic or damage the threads. Usually, hand-tightening followed by a quarter turn is sufficient. The seal comes from the rubber gasket, not the force you apply.

Also, ensure the end cap matches the nut. At JE, our T10 waterproof end caps are designed for PG7 (M12) and PG9 (M16) nuts. If you are using a single-ended tube, you will need one end cap with a nut hole and one without. If you are using a double-ended tube, you will need two end caps with holes.

One more thing—check the cable diameter before ordering. I've seen too many people choose M12 because it sounds standard, only to find their cable is 8mm and won't fit. Measure first, then order.

If you are working on a waterproof LED tube project and need help choosing the right nut size, please feel free to contact us. We do this every day, and we'd love to help you get it right the first time.

Product Details

Anti-loosening and locking: The nylon self-locking nut uses a nylon ring embedded at the top. When the bolt is tightened, the nylon ring is compressed and deformed, generating continuous radial pressure and frictional resistance. Its anti-loosening and vibration-resistant effect is several to tens of times higher than that of ordinary nuts.

Sealing assistance: The deformed nylon ring fills the gaps in the threaded fit, providing a certain degree of moisture barrier and reducing moisture seepage along the threads.

Temperature limitations: The operating temperature is generally -50℃ to 100℃. Prolonged exposure to temperatures exceeding 120℃ will cause the nylon to soften and fail. It is also unsuitable for strong acid and alkali environments (weak acids and alkalis are fine).

Limited reusability: The nylon ring does not fully spring back after deformation. It is generally recommended to reuse it no more than 3-5 times. Further reuse will reduce the anti-loosening and sealing effects.

Product Qualification

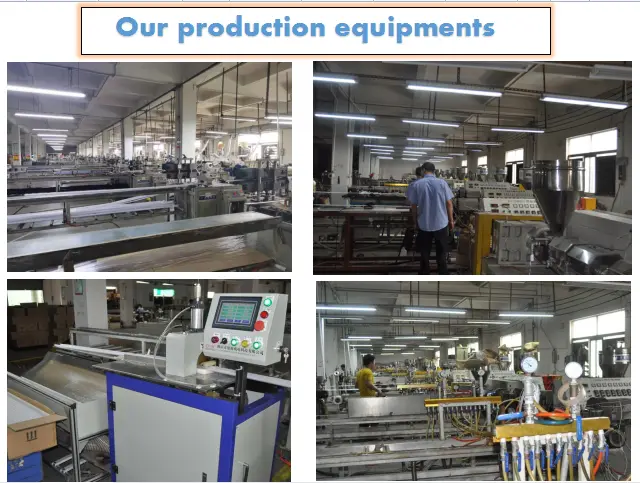

As a LED Aluminum Profile and LED plastic profile professional manufacturer, here are our main machines:

1. 20 plastic extrusion machines

2. 5 aluminum extrusion machines,

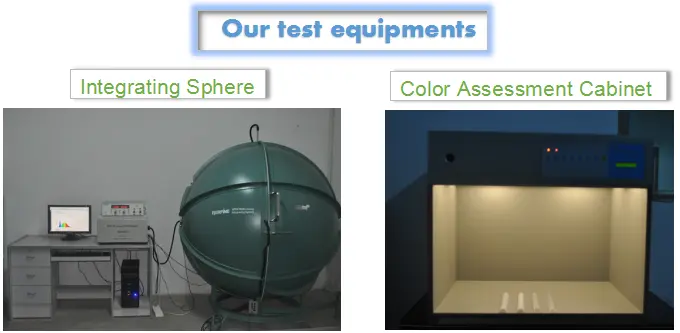

3. A professional integrating sphere to test whether the lamps made by our lamp kit can meet the various indicators required by customers,

4. A professional standard light source testing equipment for testing the light transmittance and other properties of plastic lampshades.

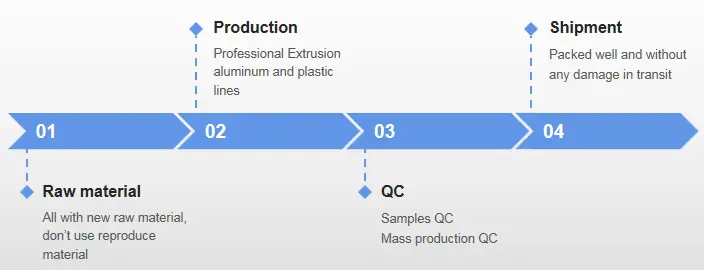

JE always focus on product qualification from aluminum and plastic raw material to extrusion production line, from samples quality control to mass production control, from strong perfect package to whole-heart service.

Deliver,Shipping And Serving

FAQ

Q1. Can Your products be installed under the cold weather?

Re: Yes, Weather resistance of PC is -40 degree to 120 degree.

Q2. What kinds of LED lighting can use your profiles?

Re: LED cabinet lighting, LED strip lights, T5/T6/T8/T10/T12 tubes, tri-proof tubes and special-shape tubes, etc.

Q3.How many staffs in your factory? Re: 50-80 staffs in production line. 8 staffs in sales team, 10 staffs in R&D.

Q4. How long is your lead time?

Re: For our regular items the lead time is about 3-5 days. For customized items, the lead time is about 25-35 days including tools making time.

Q5. Parking Garages

Parking structures are dusty, humid, and cars kick up all kinds of grime. Plus, the lights get hit by exhaust fumes (corrosive) and occasional bumps from side mirrors. Tri-proof housings with IK10 impact resistance and UV-stabilized polycarbonate diffusers last for years without yellowing or cracking.
