T8 G13 End Cap

This is a conventional T8 G13 end cap of our company. G13 end cap refers to the end cap with two pins with a center distance of 13mm at both ends of the tube. The main purpose of using G13 end caps for LED T8 tubes is to be physically compatible with existing lamp holders (lamp fixtures) designed for traditional fluorescent lamps T8. Users can directly insert LED tubes into the G13 lamp holders of old fluorescent lamp holders. However, the power supply method of LED T8 tubes is different from that of traditional fluorescent lamps: traditional fluorescent tubes require high voltage starting (starter/electronic ballast) and current limiting (ballast). The LED tubes contain low-voltage DC LED lamp beads and driver power supplies (constant current sources).
According to the power supply access position: it can be divided into double-ended power supply and single-ended power supply.
Double-ended power supply (Double-Ended Power): This is the most common type and the one most closely related to the G13 end cap. The G13 end caps at both ends of the LED tube are used to access the AC mains (L live wire and N neutral wire). The internal drive circuit of the lamp tube is usually connected between the two pins at both ends, or there is a wire inside to connect the two ends.
Single-Ended Power: The AC mains is only connected to the two pins at one end of the lamp tube (usually marked as L/N), and the two pins at the other end are only used for physical fixation, and are not connected or short-circuited internally (acting as a jumper). This type of lamp tube has higher requirements for the modification of old lamps (needs to change the wires or use a specific lamp holder), and the plug structure is usually different from that of the double-ended one (for example, one end has two independent pins, and the other end may be connected pins or have a different structure).

Product Parameter (Specification)

Product Feature And Application

T8 G13 end caps are mainly used in:
Large supermarket lighting renovation: For example, thousands of T8 fluorescent tubes are replaced with LEDs. By using the compatibility of G13 plugs, the entire site can be renovated within 3 days, saving 60% of electricity.
High-altitude lighting fixtures in industrial plants: Avoid removing ballasts at high altitudes and directly replace LED tubes to reduce safety risks.
School/hospital emergency lighting: Keep the original emergency lighting fixture frame and quickly upgrade to LED light sources to meet fire regulations.

Product Details

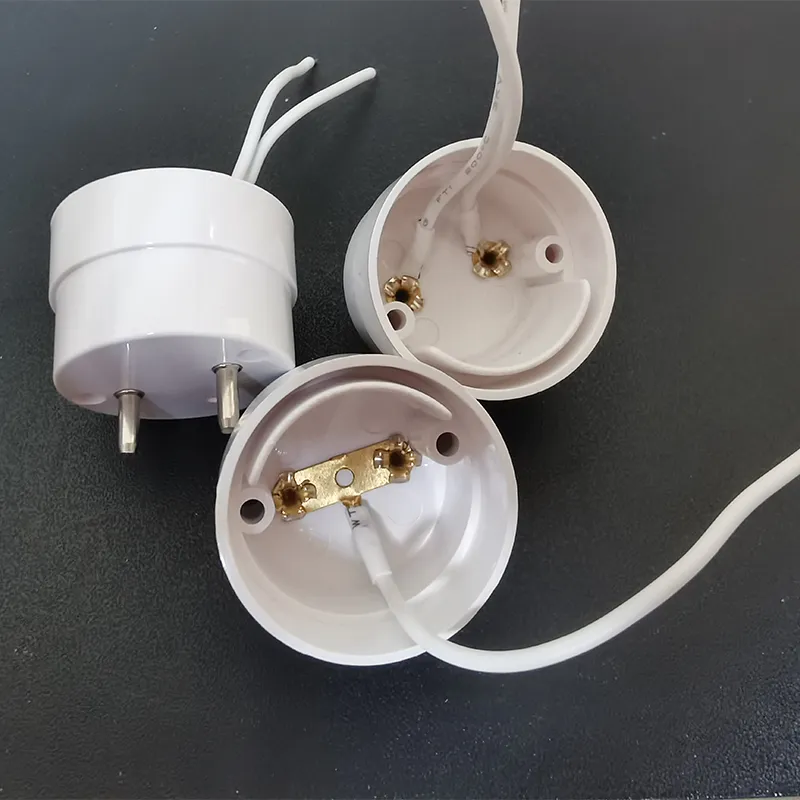

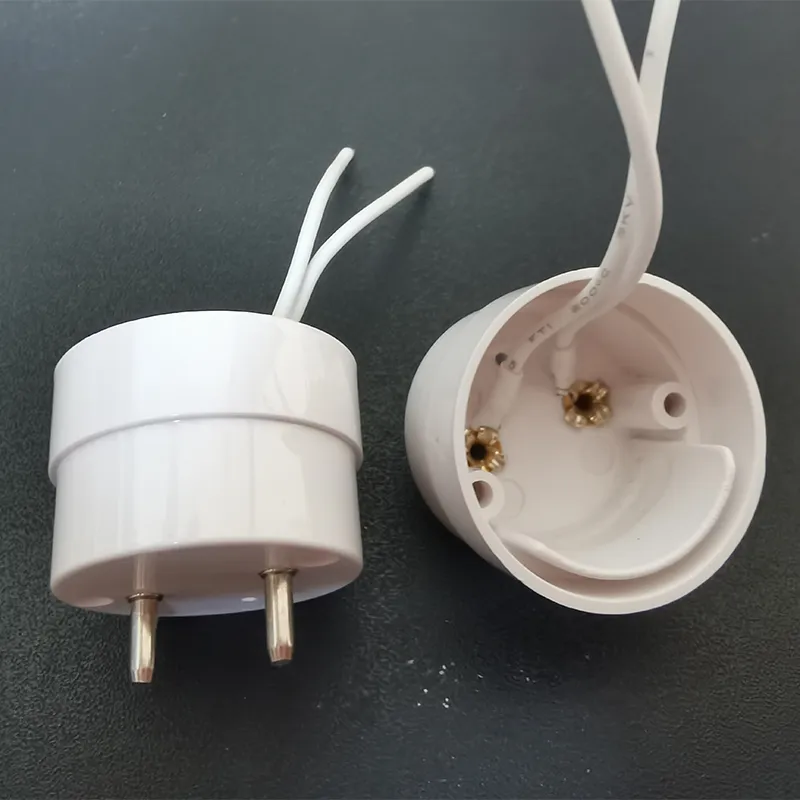

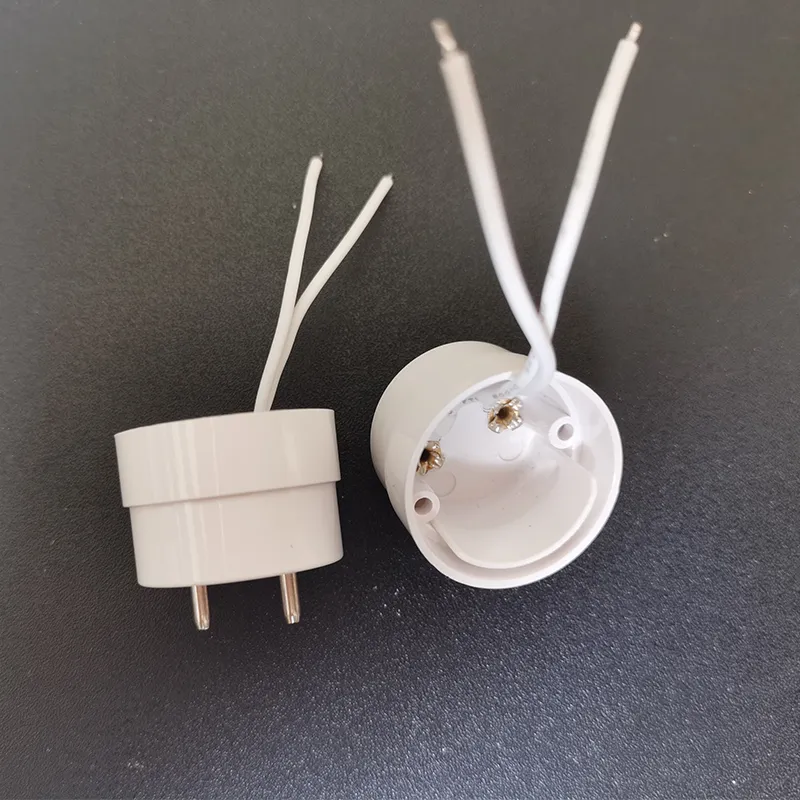

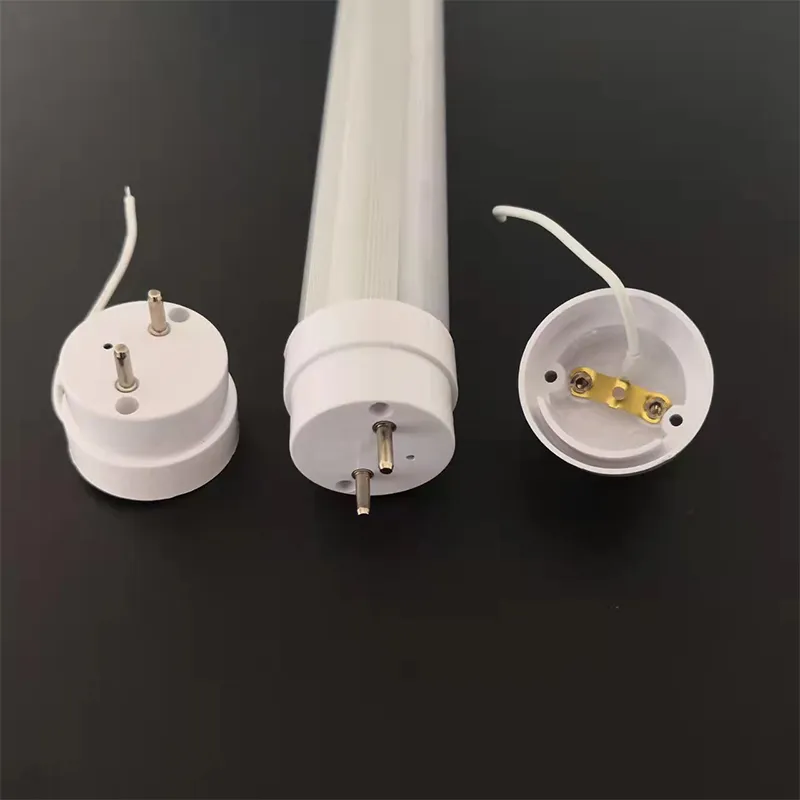

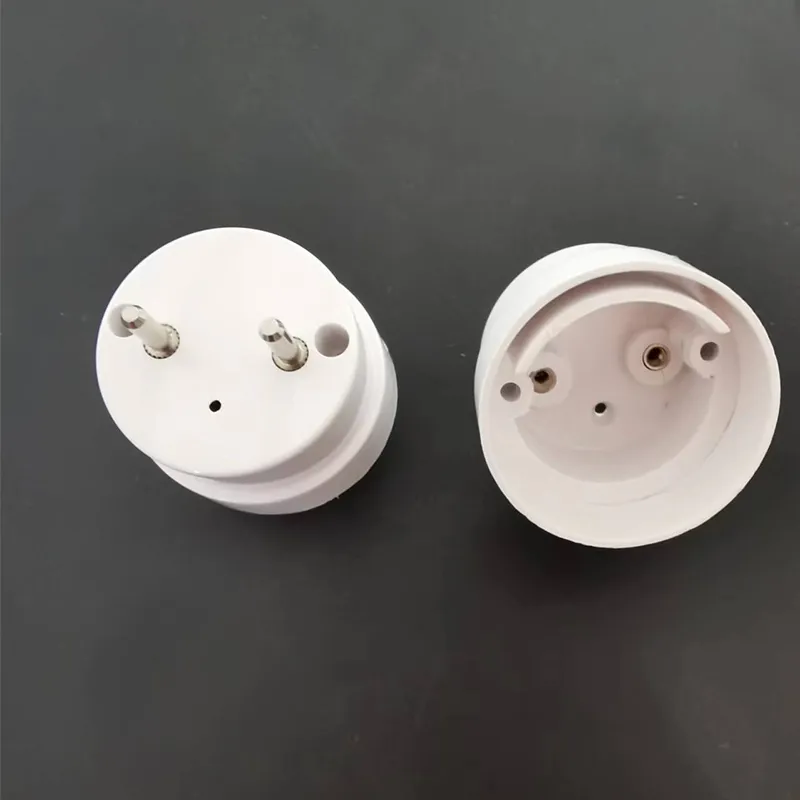

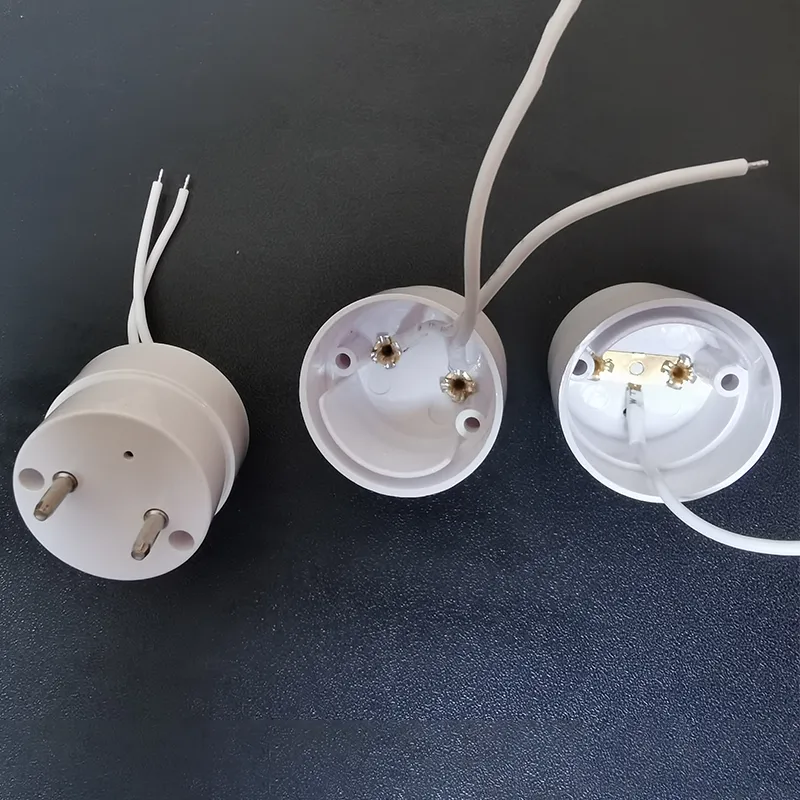

More details of this T8 G13 end cap:

Product Qualification

Dongguan Jinen Lighting Technology Co., Ltd. is located in Dongguan City, Guangdong Province, the "world factory". The products we can produce include various special-shaped plastic profiles, PC round tubes for LED lighting, LED plastic tube diffusers, LED linear light housings, LED T5/T6/T8/T10/T12 tube housings, LED three-proof housings, LED LED aluminum profiles for light bars, etc. The materials we commonly process are PC, PMMA, ABS, PVC, etc. Most of the products are used in lighting, and some products are used in construction, decoration, packaging, toys, medical equipment and other industries.
As a LED tube housing manufacturer in China, JE has a professional design, development and production team for LED tube end caps, and can provide a variety of end caps matching LED tubes according to customer requirements,truly a one-stop shop type LED tube housing accessories supplier. The LED tube end cap is an important part of the LED tube housing. The production process is mainly injection molding, which can be used for LED T5 tube, LED T8 tube, LED T10 tube and LED T12 tube.

Deliver,Shipping And Serving

FAQ

Q1. Where is your factory located?

Re: We are located in “World manufacturer” Dongguan city, Guangdong province, China.

Q2. What kinds of LED lighting can use JE’s profiles?

Re: LED linear lights such as: LED cabinet lighting, LED strip lights, T5/T6/T8/T10/T12 tubes, tri-proof tubes and special-shape tubes, etc.

Q3. Is the mold opening cost borne by the customer or your factory?

Re: Customers pay the cost first, after the quantity is more than 50000 meters for total order, the tool cost can be deducted in order.

Q4. How many plastic extrusion production lines are in your factory?

Re: We have 20 plastic extrusion production lines.

Q5. Is OEM & ODM acceptable?

Re: Yes, We have various types of professional and technical personnel and enough machines that are very willing to accept OEM & ODM cooperation.
