Led Profile for Strip

JE is a professional LED profile manufacturer and supplier trusted by customers. This profile designed and developed by our company has been recognized by customers since its launch. The products are mainly sold to professional linear lighting factories. Linear lighting solutions provide business, lighting engineering business, etc. Magnetic LED profile for strip is a very flexible installation method in linear lighting projects. During installation, the linear lighting can be continuous or interrupted, giving lighting designers a larger and more adequate design space.

Send Inquiry

Product Description

The Led Profile for Strip produced by the JE factory have a very wide range of applications. The main feature of this profile for LED strips is the magnet installation, which is suitable for waterproof and non-waterproof standard strips less than 12MM wide, such as 8MM, 10MM, 12MM. The quality of the magnet is very good, it can be adsorbed to iron, iron alloy metal, and it is not easy to fall. Due to the special design of this model, the aluminum profile is a little heavier than other styles, which can improve the heat dissipation capacity of the LED strips. Although the size is small, some strip with relatively high power can be placed, which can not only be used for decoration, but also for lighting no problem either.

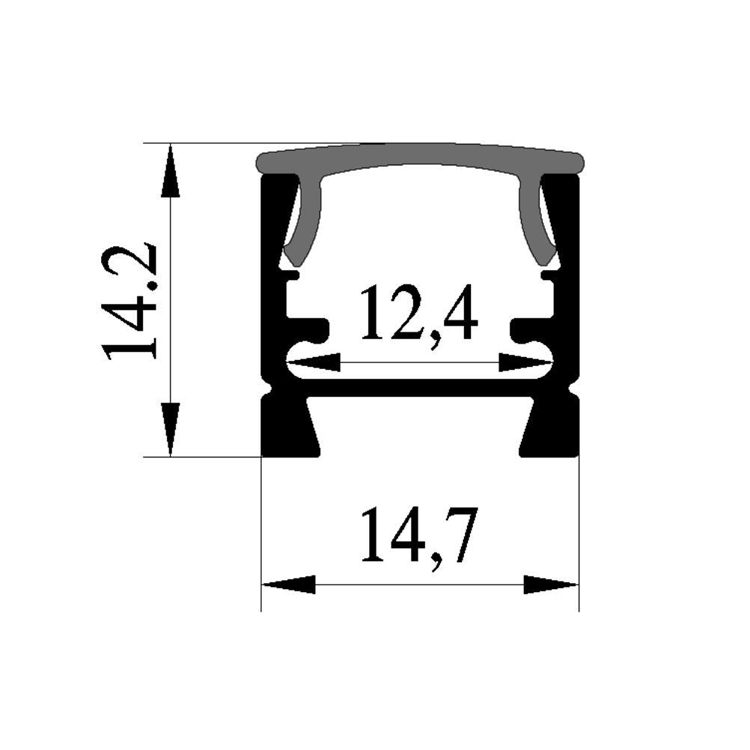

Led Profile for Strip Parameter (Specification)

Length	1m, 2m, or cut-to-size
Width	14.7mm
Height	14.2mm
Max strip width	12mm
LED Aluminum profile	6063-T5 aluminum
LED Aluminum profile color	Silver color
LED plastic profile (Diffuser )	PC(Polycarbonate)
LED plastic profile (Diffuser )color	Frosted, semi-clear and Clear(transparent)
Mounted	Magnetic Mounted
Clips	/
End caps	Plastic(2pcs/set)

Product Feature And Application

This LED profile for strips is suitable for office renovations, hotel renovations, residential renovations and all other linear lighting projects.

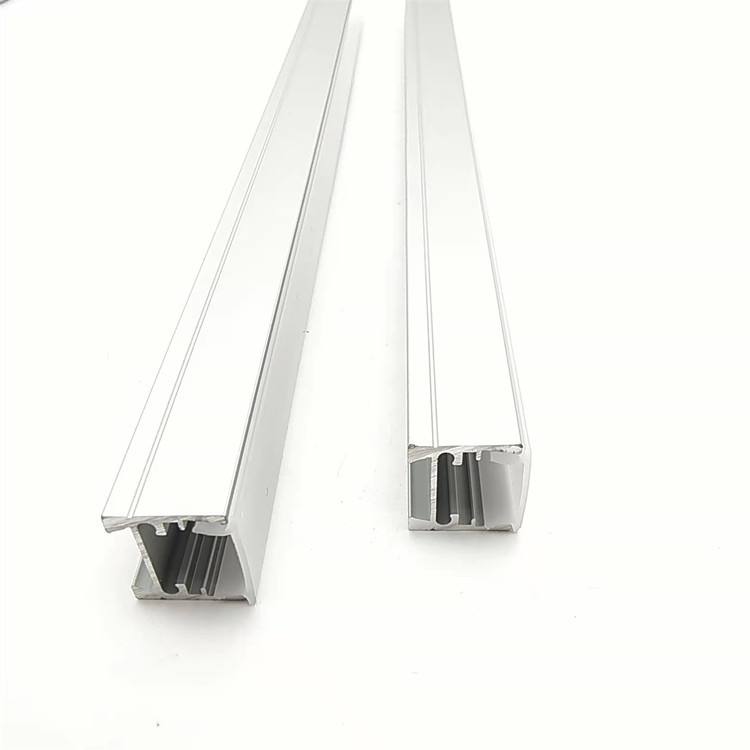

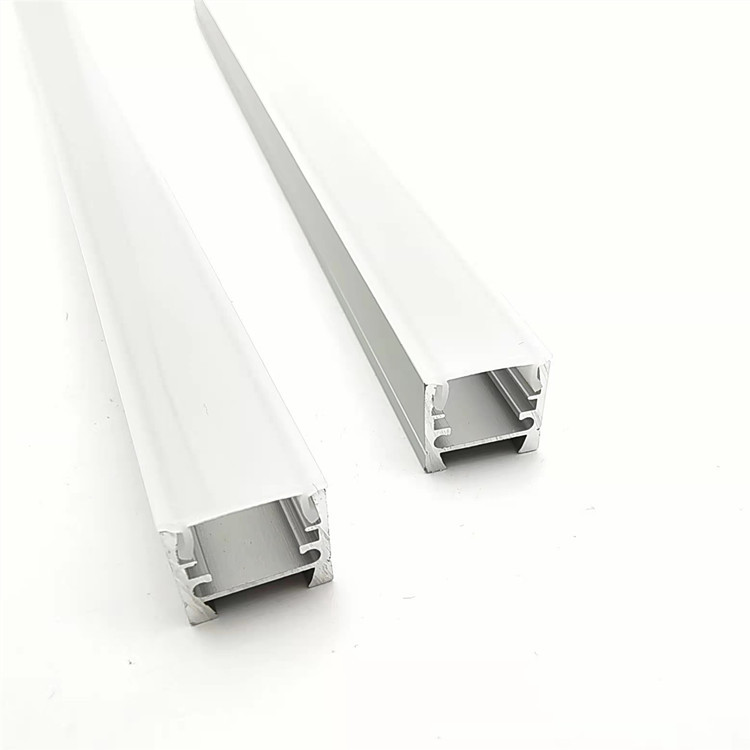

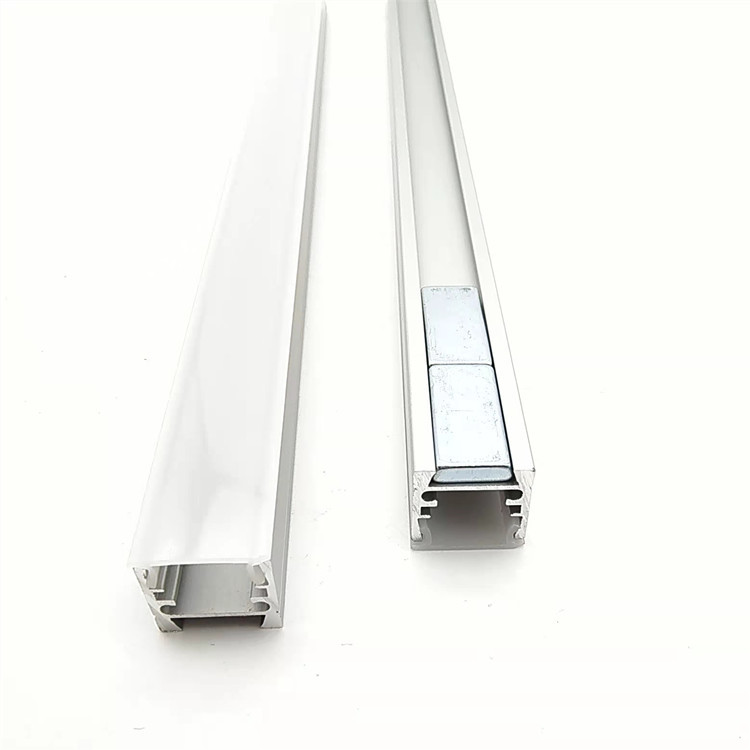

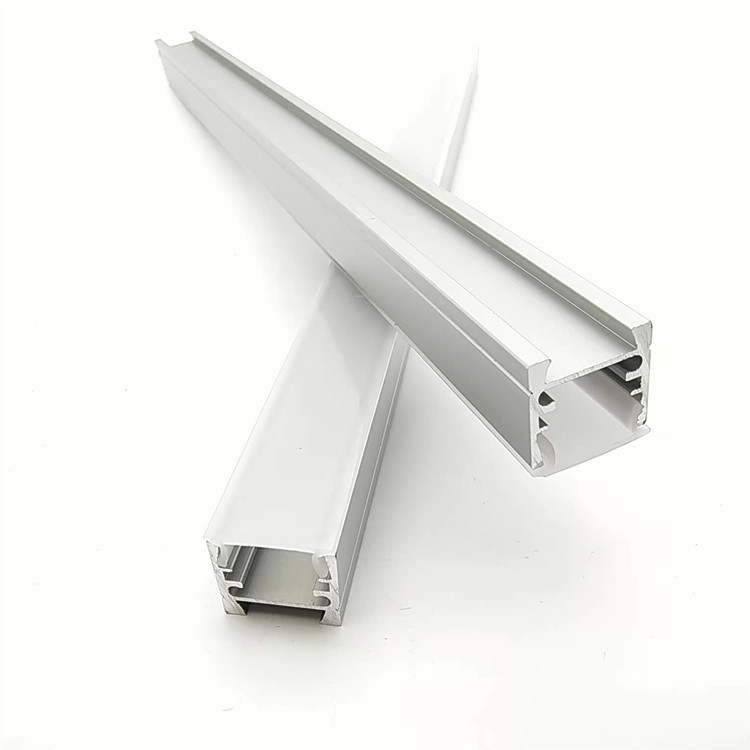

Led Profile for Strip Details

More details of this LED profiles for strips below:

Led Profile for Strip Qualification

The products that we can produce includes variety of special-shapes plastic profile, PC round tube for LED lighting, LED plastic tube diffuser, LED linear lights housing, LED T5/T6/T8/T10/T12 tube housing, LED tri-proof housing, LED aluminum profile for LED strips, etc. These products are exported to the United States, Canada, Japan, the United Kingdom, Italy, Mexico, Russia, India, Pakistan, Cyprus, Iran and other countries.
