G13 End Cap for LED Tube

JE produces G13 End Cap for LED Tube , covering standard and application-specific designs for T5, T8, T10, and T12 tubes.

Construction

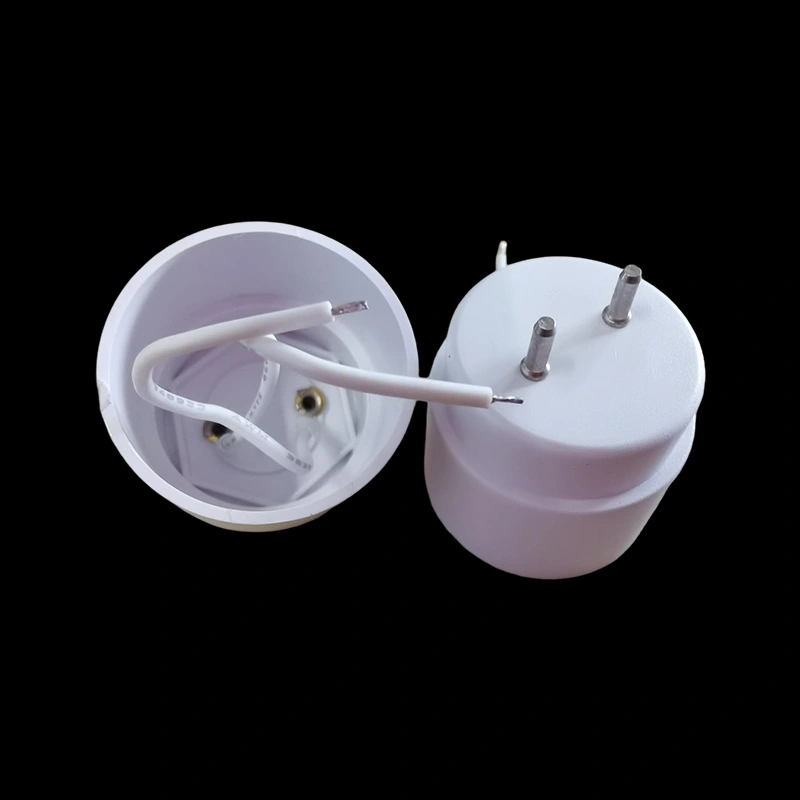

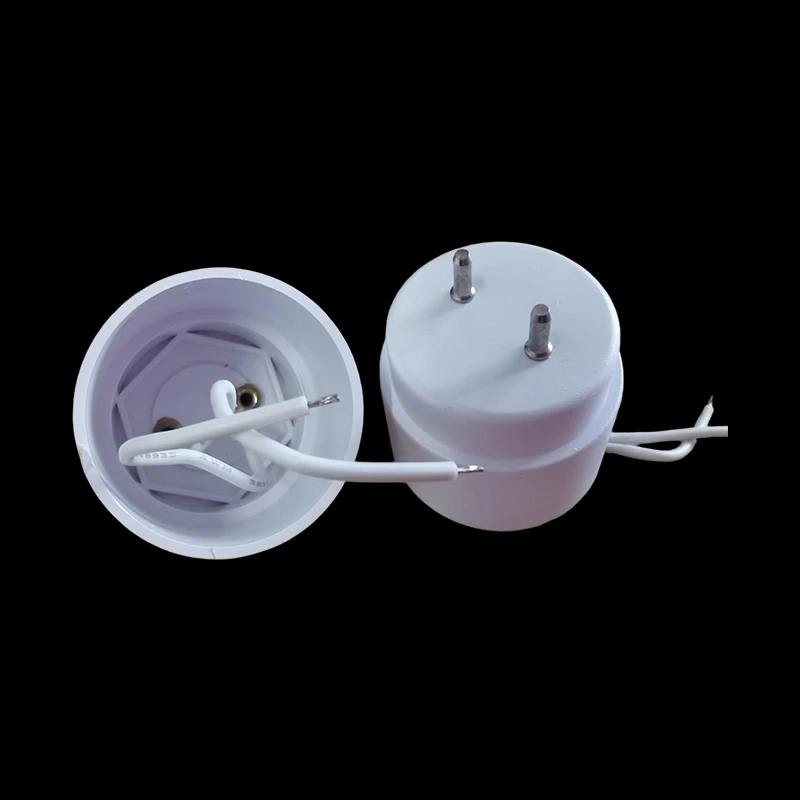

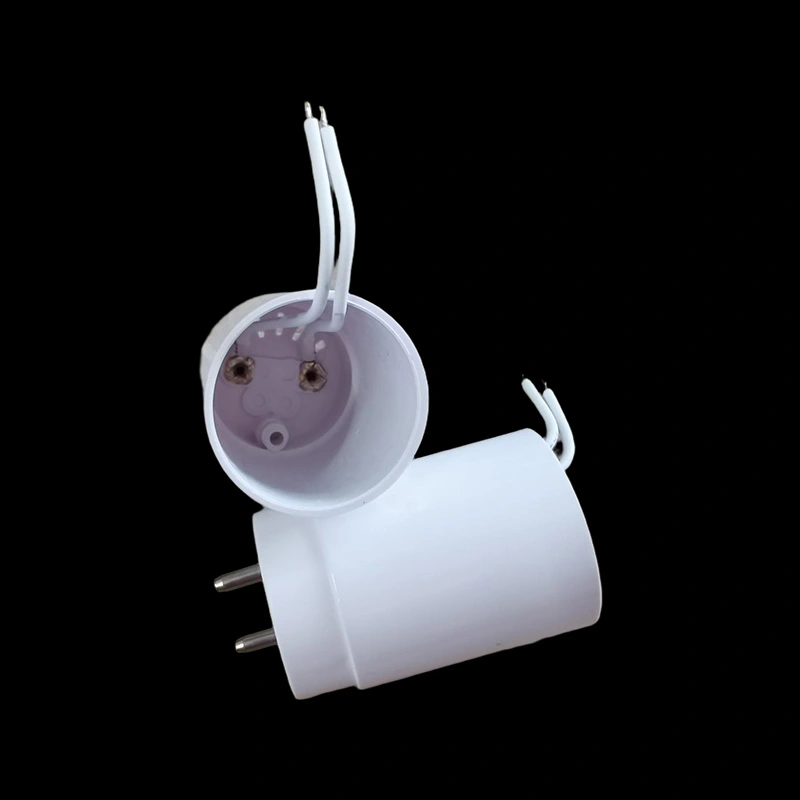

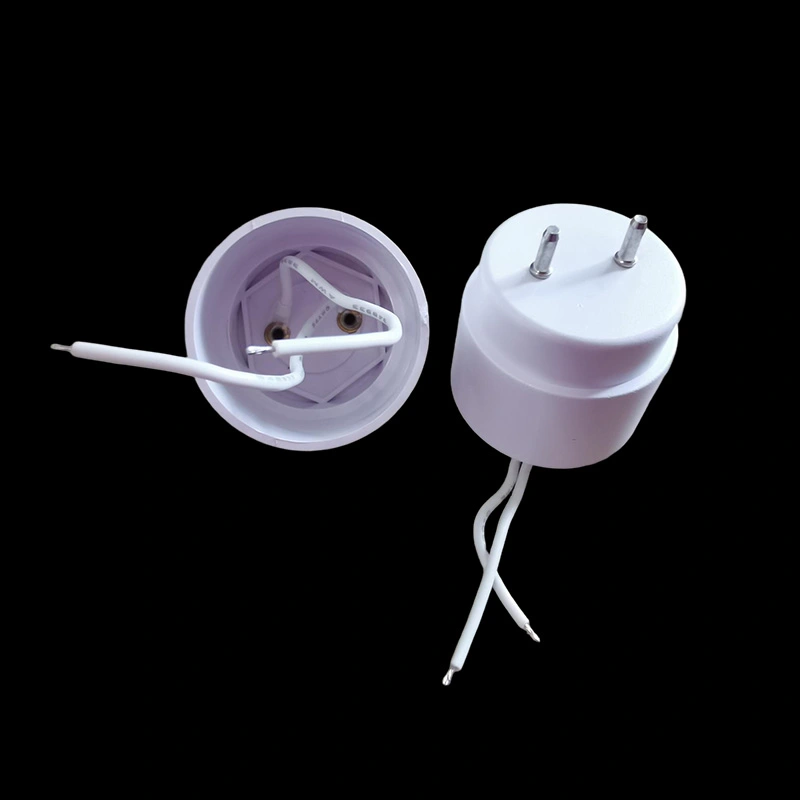

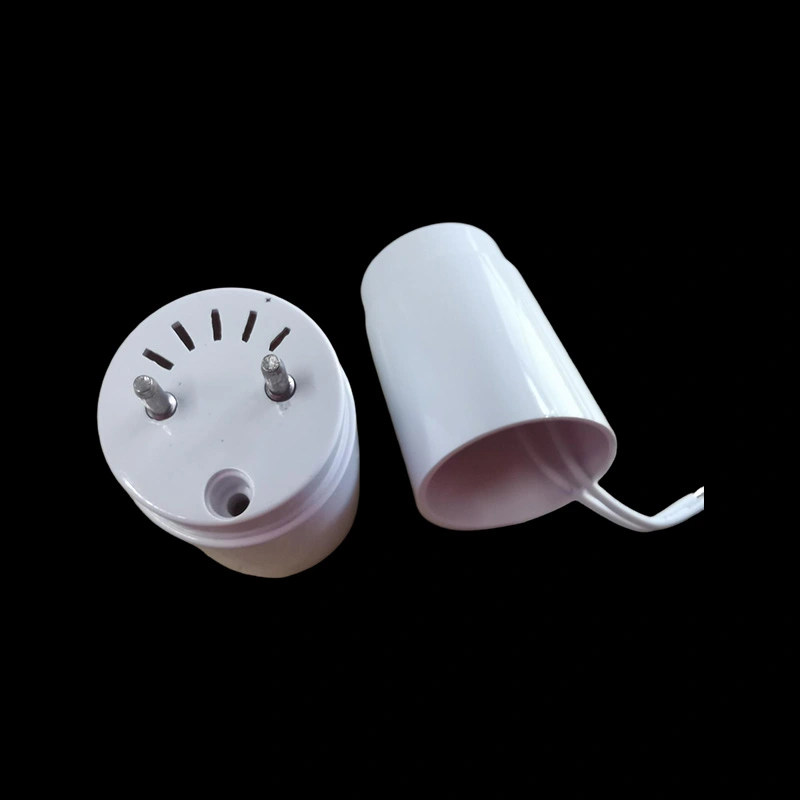

A G13 end cap consists of a plastic housing, two G13 pins, and internal wire connections. The G13 interface uses two pins with a 12.7 mm center-to-center spacing, also specified as 0.5 inch.

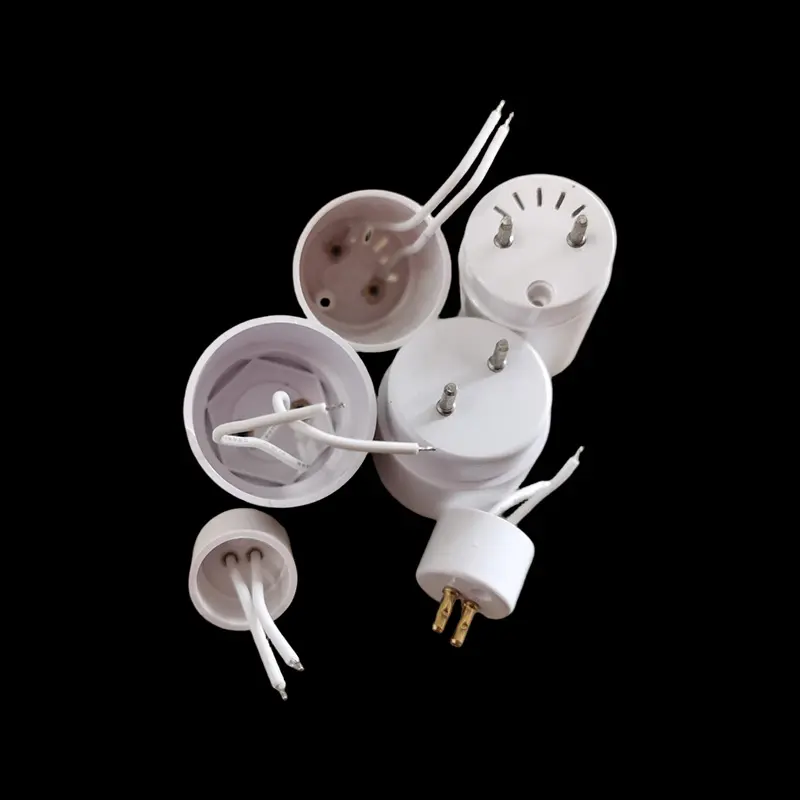

JE produces end caps for T5, T8, T10, and T12 tubular lamps. Housing dimensions vary according to tube diameter, while the G13 pin spacing remains 12.7 mm.

A G13 end cap consists of a plastic housing, two G13 pins, and internal wire connections. The G13 interface uses two pins with a 12.7 mm center-to-center spacing, also specified as 0.5 inch.

JE produces end caps for T5, T8, T10, and T12 tubular lamps. Housing dimensions vary according to tube diameter, while the G13 pin spacing remains 12.7 mm.

Main Specifications

G13 End Cap Types

Fixed G13 End Cap

Fixed G13 End Cap for LED Tube use a non-rotating housing for standard tubular LED lamp assemblies. They are used in indoor lighting, commercial fixtures, retrofit tubes, and linear LED lamps.

Rotatable G13 End Cap

Rotatable G13 end caps provide adjustable tube orientation after installation. Available angular positions include 0°, 22.5°, 45°, 67.5°, and 90°.

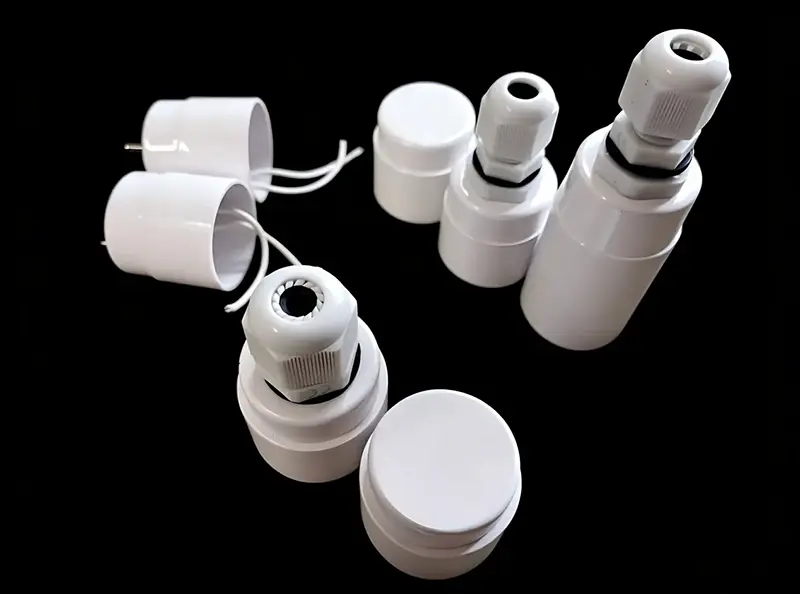

Waterproof G13 End Cap

Waterproof G13 end caps incorporate sealing components at the lamp end and are available in IP65 and IP67 configurations. IP68 versions are available for specific project requirements.

They are used for outdoor lighting, plant grow lights, cold-storage facilities, car washes, and other humid environments.

G13 End Cap Size Matching

The external housing dimensions of a G13 end cap vary with the tube diameter. JE supplies corresponding end-cap structures for common T-series tube formats.

Housing dimensions, lengths, pin construction, wire routing, and mounting details can be developed for different LED tube designs.

Product Details

Applications

Commercial Lighting

G13 end caps are used in tubular LED lamps for hotels, supermarkets, shopping malls, offices, schools, and other commercial buildings.

Industrial Lighting

T8, T10, and T12 LED tubes with G13 end caps are used in factories, warehouses, workshops, production areas, and parking facilities.

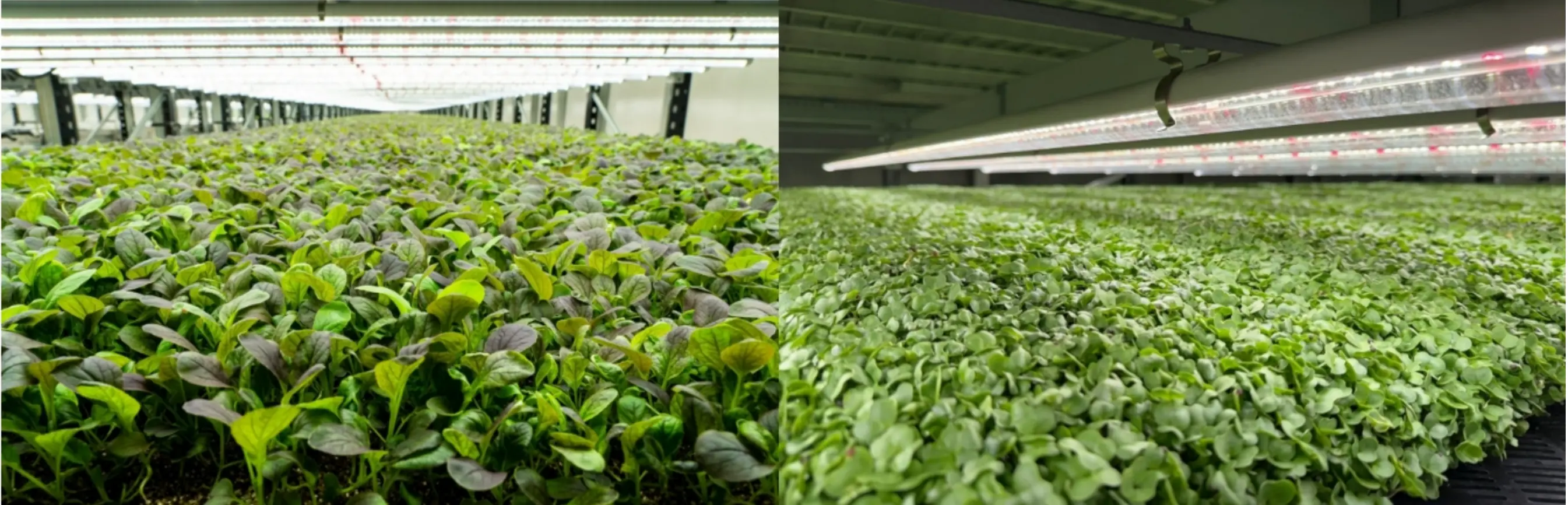

Plant Grow Lighting

Waterproof G13 end caps are suitable for tubular LED grow-light assemblies where the lamp ends require enhanced moisture protection.

Outdoor and Humid Environments

IP65 and IP67 G13 End Cap for LED Tube are used in outdoor linear lighting, cold-storage facilities, car washes, and other moisture-exposed lighting installations.

LED Retrofit Tubes

G13 end caps support tubular LED products designed to replace traditional fluorescent tubes while retaining the established two-pin tube interface.

Material and Configuration

PC is used for the end-cap housing. JE offers different pin constructions, wire arrangements, housing dimensions, lengths, colors, and mounting structures for tubular LED assemblies.

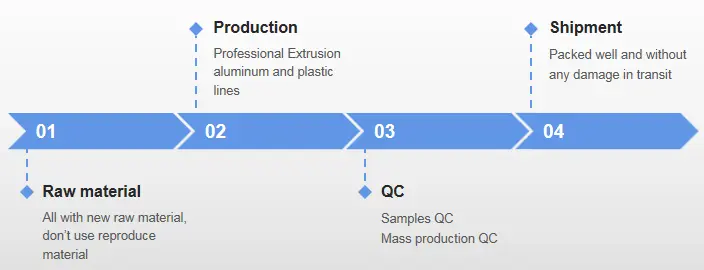

Manufacturing and Quality Control

JE has produced LED lighting components since 2017 and operates in-house R&D, tooling, injection molding, and production processes.

For G13 end caps, production and inspection cover housing dimensions, pin positioning, pin alignment, wire connections, component assembly, and sealing performance for waterproof models.

The company's stated quality policies are continuous improvement and striving for 0% deficiency.

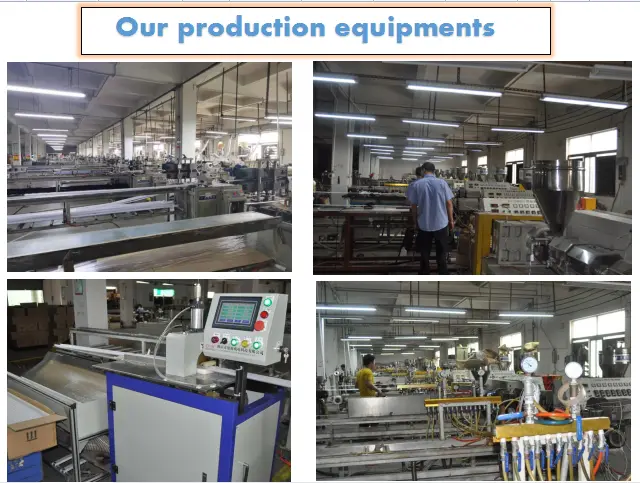

Production Equipment

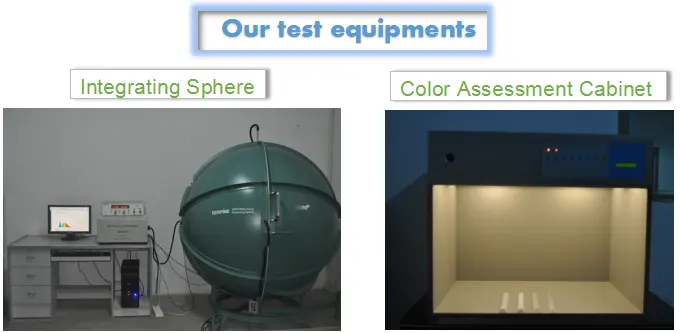

Testing equipment includes an integrating sphere and a Color Assessment Cabinet.

Delivery and Shipping

Regular G13G13 End Cap for LED Tube items have a lead time of approximately 3–5 days. Customized products generally require approximately 25–35 days, including tooling development.

FAQ

What is the pin spacing of a G13 end cap?

The G13 end cap uses two pins with a 12.7 mm center-to-center spacing, equivalent to approximately 0.5 inch.

Which tube sizes are available?

JE supplies G13 end caps for T5, T8, T10, and T12 tubular LED lamps.

What material is used for the housing?

The housing is made from PC (polycarbonate).

Are rotating G13 end caps available?

Yes. Rotatable versions are available with angular positions including 0°, 22.5°, 45°, 67.5°, and 90°.

Are waterproof G13 G13 End Cap for LED Tube available?

Yes. IP65 and IP67 versions are available, with IP68 versions available for specific projects.

Can the pin structure be changed?

Yes. Solid and hollow pin configurations are available.

Are different wire configurations available?

Yes. Single-wire and two-wire configurations are available.

Can the housing dimensions and color be customized?

Yes. Housing dimensions, length, color, and mounting structure can be customized for different LED tube designs.

What is the temperature resistance of the PC material?

The stated weather-resistance range of the PC material is -40°C to 120°C.

What is the lead time?

Regular products generally require 3–5 days. Customized products generally require 25–35 days, including tooling development.
